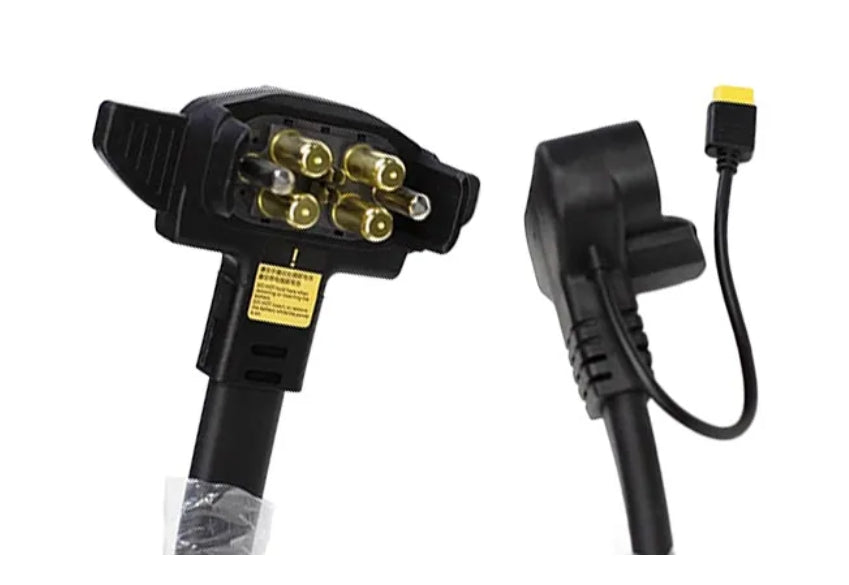

Includes the DJI DB2100 adapter cable, so it charges the DJI Agras T100's DB2160 intelligent flight batteries straight out of the box.
Fast charge from a three-phase industrial supply or compatible generator, or slow charge from a standard power outlet when three-phase isn't available.
Intelligent power management adjusts charging current automatically and keeps charging even if the ventilation holes become partly blocked.
Also natively compatible with DB1560, DB800, T40, T30 and T20P batteries, covering a mixed DJI Agras fleet with one charger.
Full protection suite: overcurrent, overcharge, over and under-voltage and overheating protection, plus self-diagnostics and clear status LED indicators.
Activate and update firmware through the DJI RC Plus controller and DJI Agras app for simple setup and monitoring.
Product description

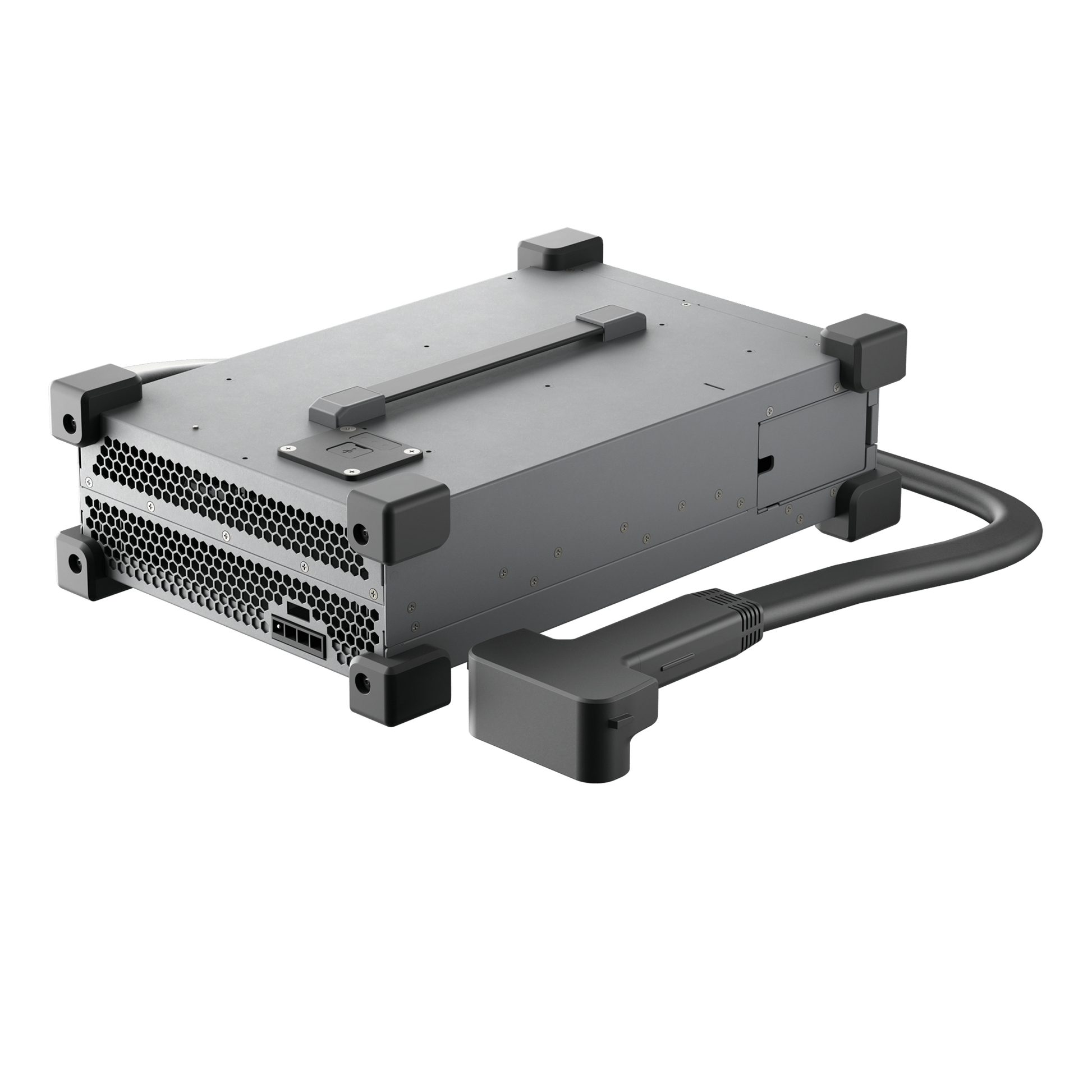

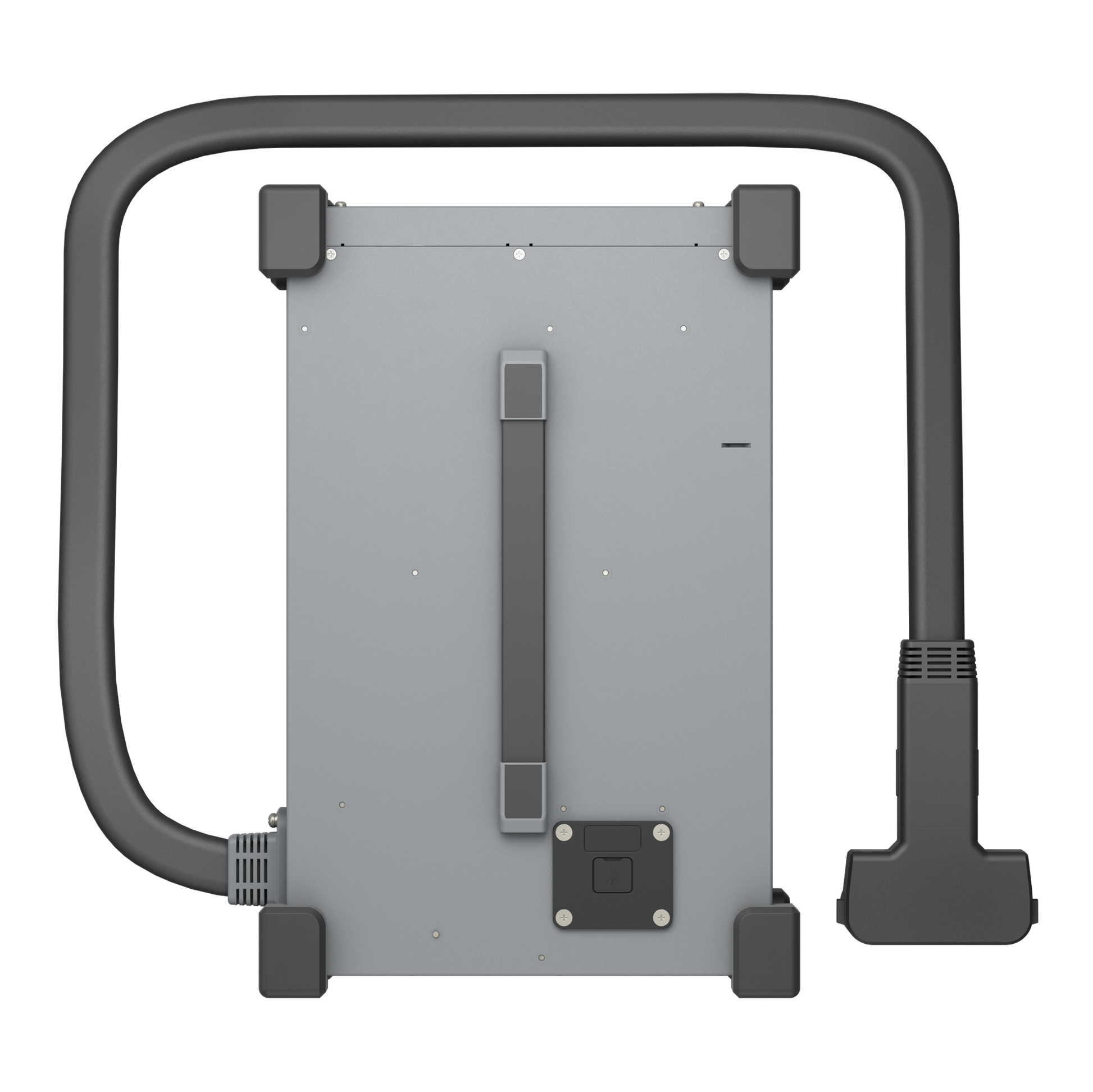

The DJI C10000 Intelligent Power Supply is a versatile, field-ready charger for DJI Agras operators who need flexible power options without committing to a fixed three-phase setup. This includes the DJI DB2100 adapter cable, so it charges the DJI Agras T100 and T70P DB2160 batteries out of the box.
Run it two ways. Fast charge from a three-phase industrial supply or a compatible generator for rapid back-to-back swaps, or slow charge from a standard power outlet when mains three-phase isn't available. Intelligent power management adjusts the charging current automatically and keeps charging even if the ventilation holes are partly blocked.
It also natively charges DB1560, DB800 and T40, T30 and T20P batteries, making it one charger for a mixed Agras fleet. A full protection suite, self-diagnostics and status LEDs keep every charge safe, with activation and firmware updates handled through the DJI RC Plus controller and DJI Agras app.
Specifications
Model number: CSX702-9500
Compatible batteries: DB1560, DB800, T40, T30 and T20P natively; Agras T100 DB2160 via the included DB2100 adapter cable
Output channels: 1 (charges one battery at a time)
Input / output (220-240 V AC): main and auxiliary 220-240 V AC, 50/60 Hz, up to 24 A; output up to 59.92 V DC, 175 A, 9000 W
Input / output (100-120 V AC): main and auxiliary 100-120 V AC, 50/60 Hz, up to 16 A; output up to 59.92 V DC, 60 A, 3000 W
Fast charging source: three-phase five-wire industrial supply (18 kW or above), or single-phase generator (220 V, 12 kW or above)
Slow charging source: standard power outlet (via the conversion and slow charging cables)
Protection: overcurrent, overcharge, over-voltage, under-voltage and overheating, with self-diagnostics and status LEDs
