100L spray capacity with 100kg spreader capacity (limited to 74.9kg max payload in Australia)
Up to 40L/min spray rate with additional nozzles
IP rated, hose it down when you're finished
All-in-one solution that allows users to map, survey, spread and spray based on their needs.
Flexible configuration for heavy lift applications
Note that charger and batteries are sold seperately
Product description

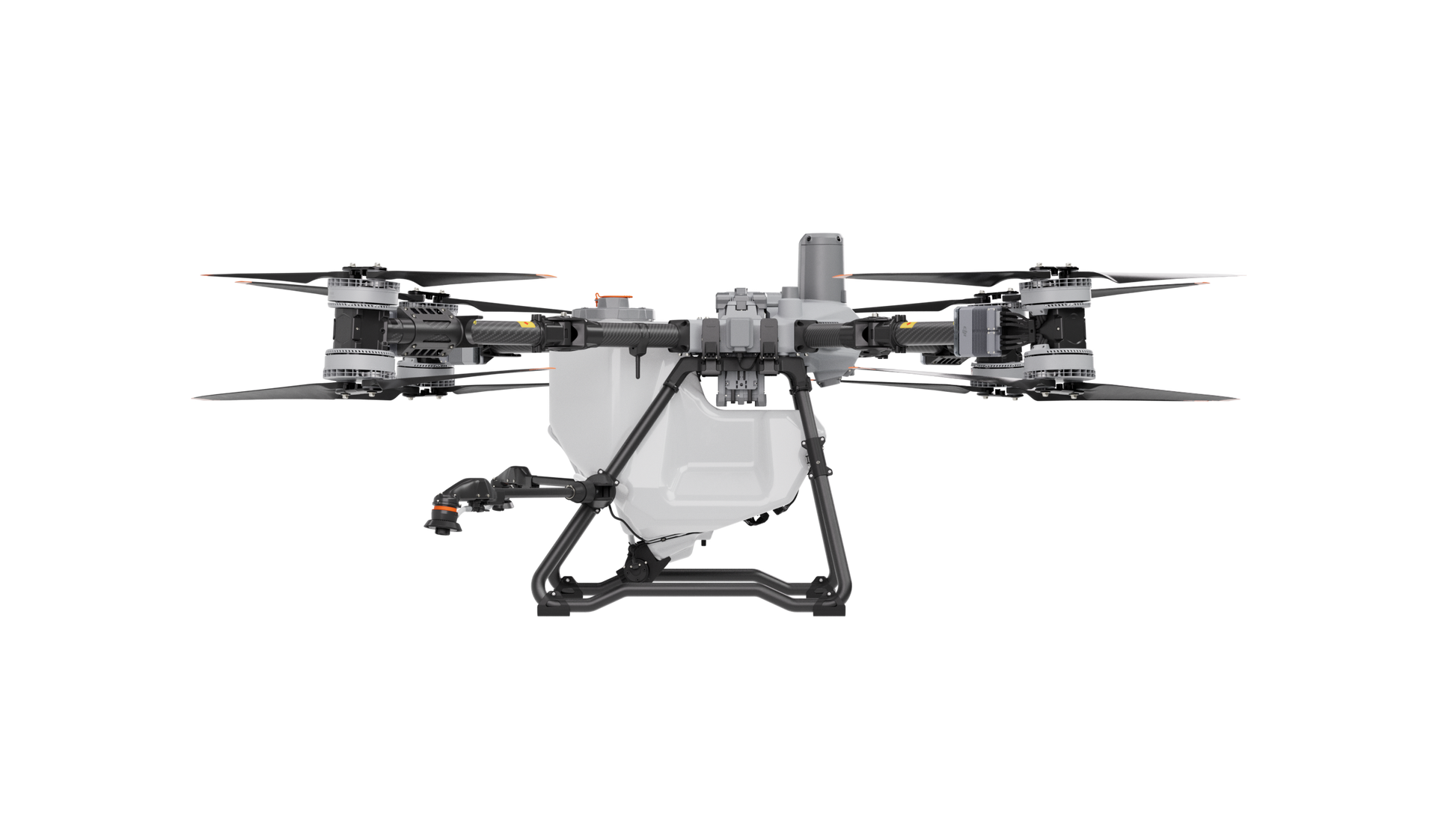

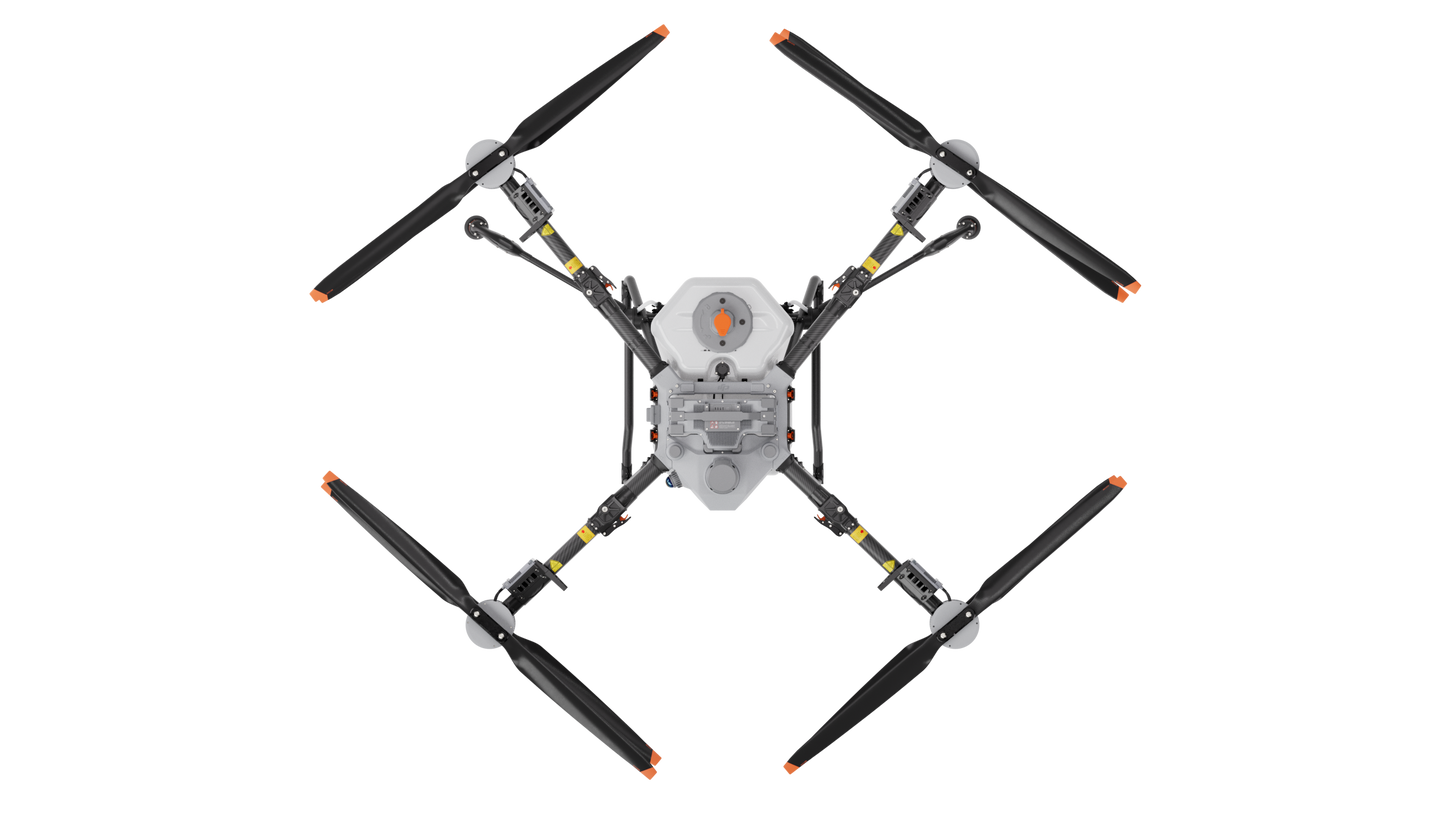

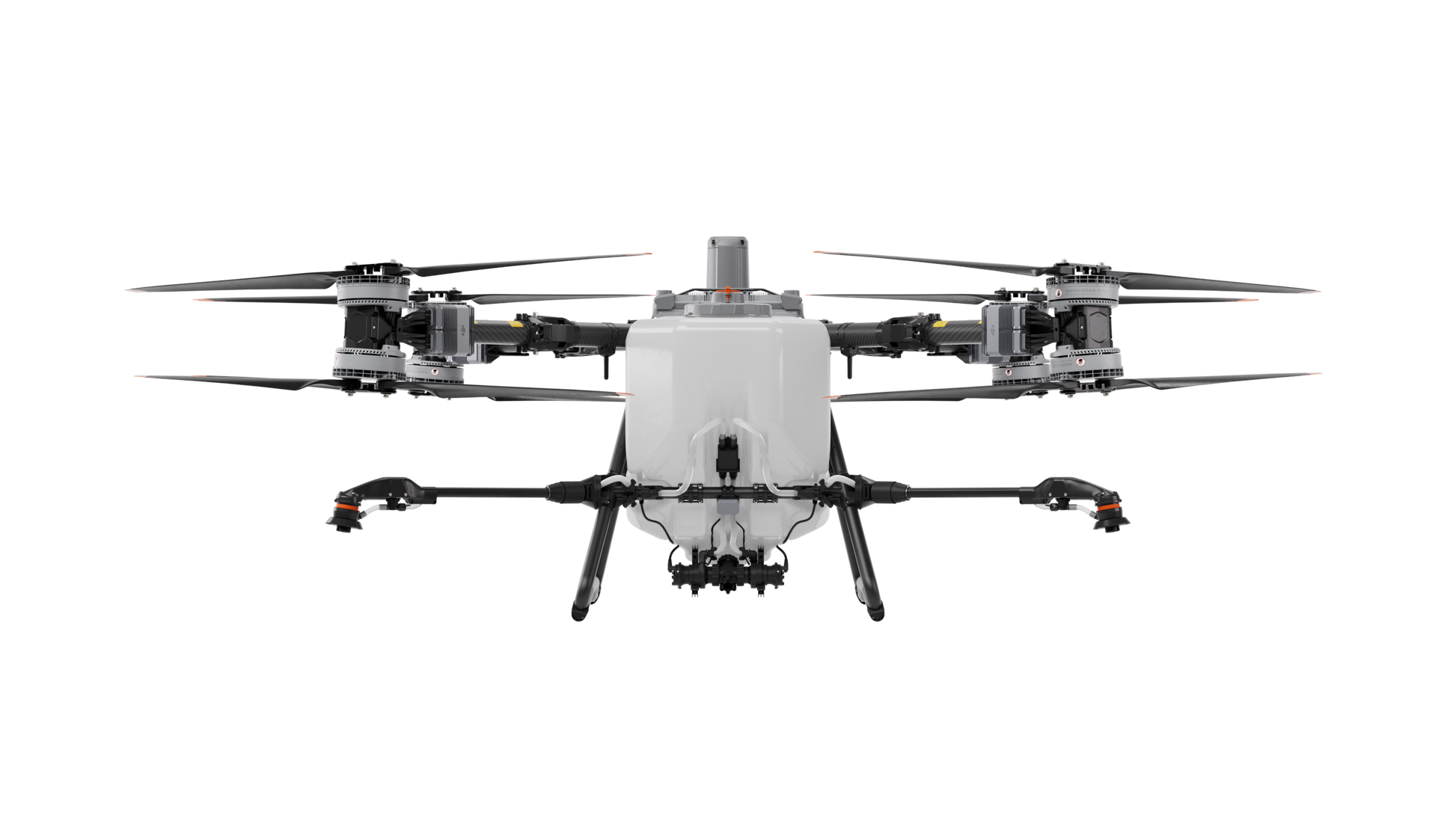

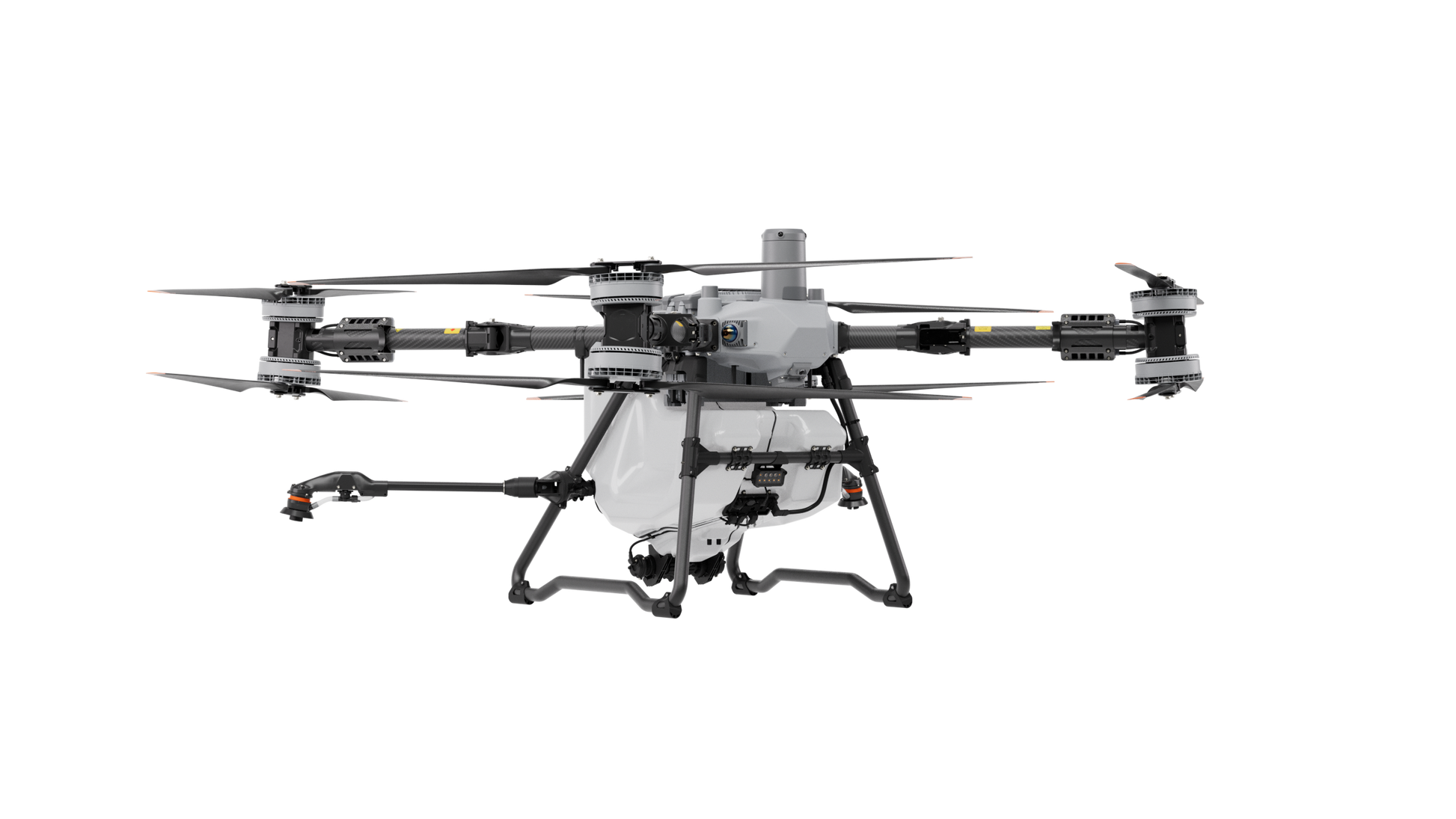

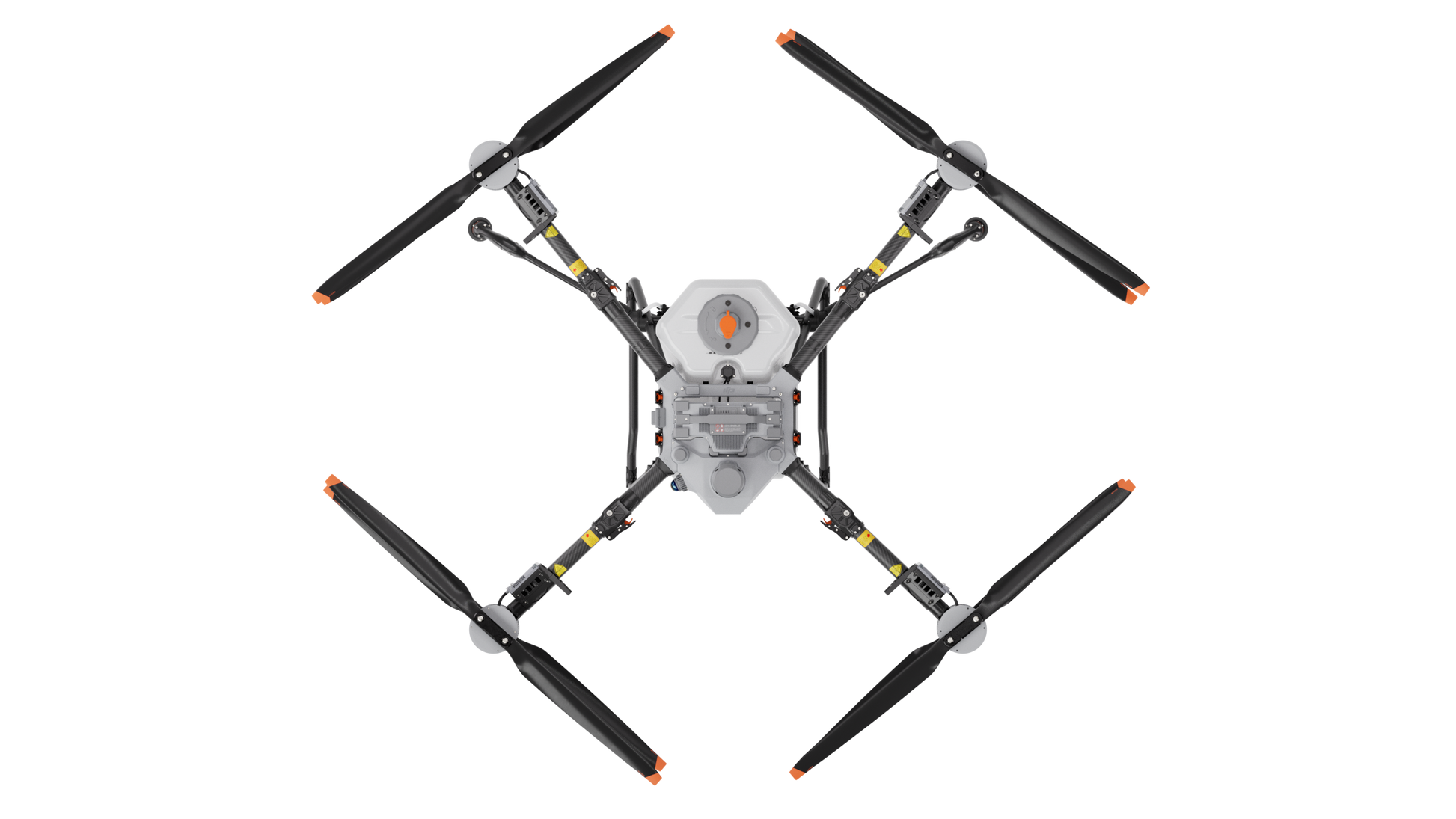

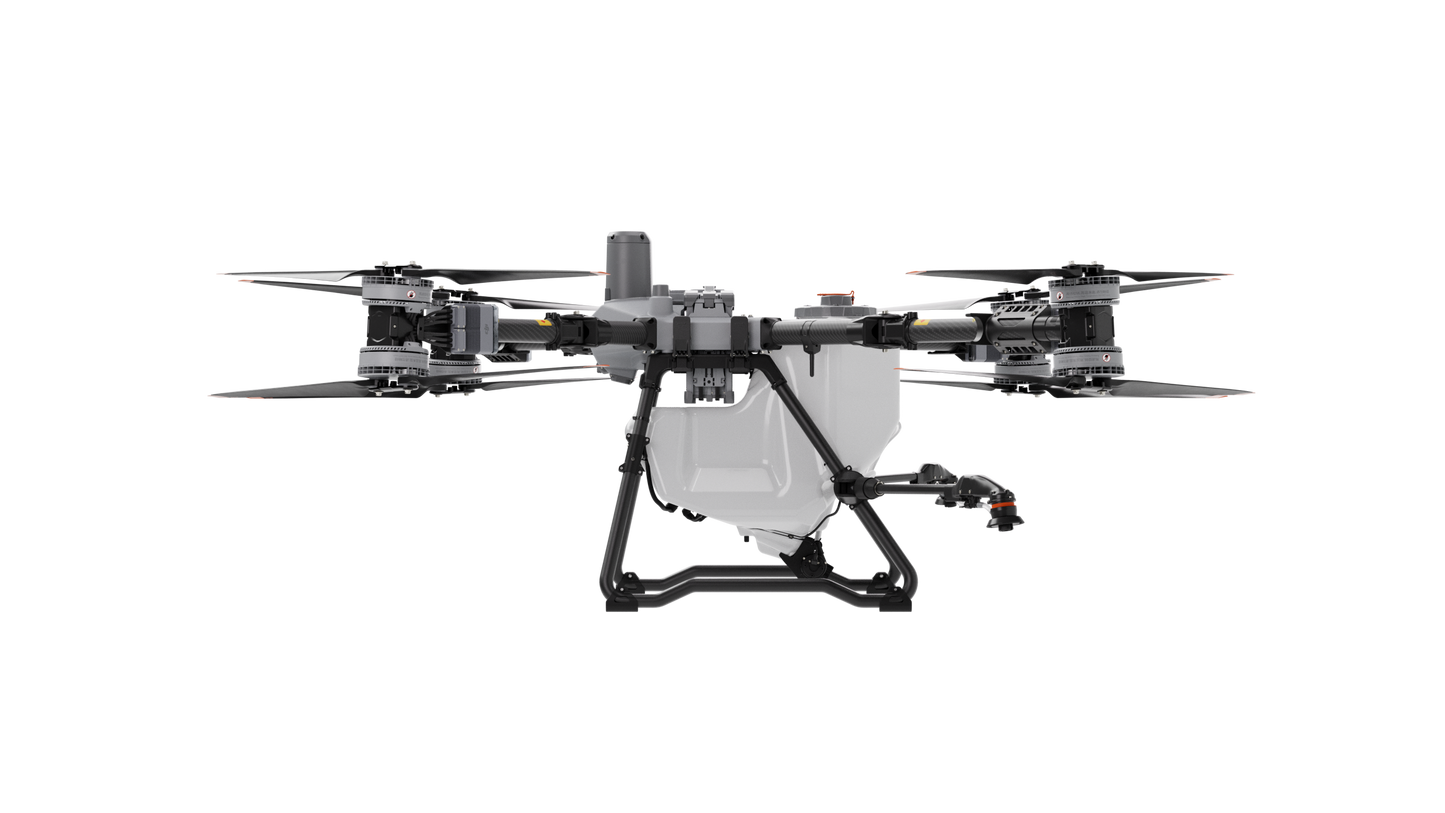

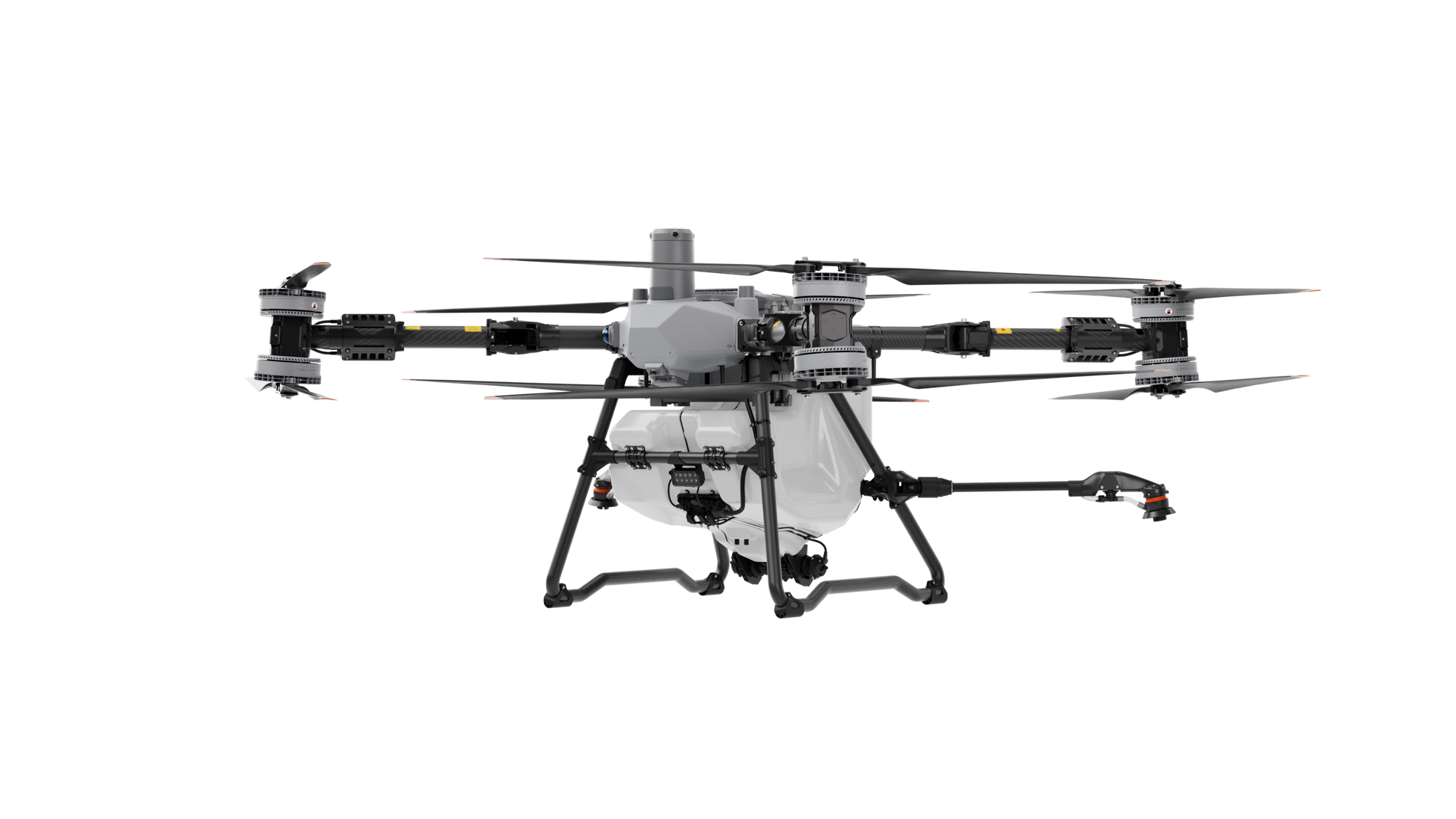

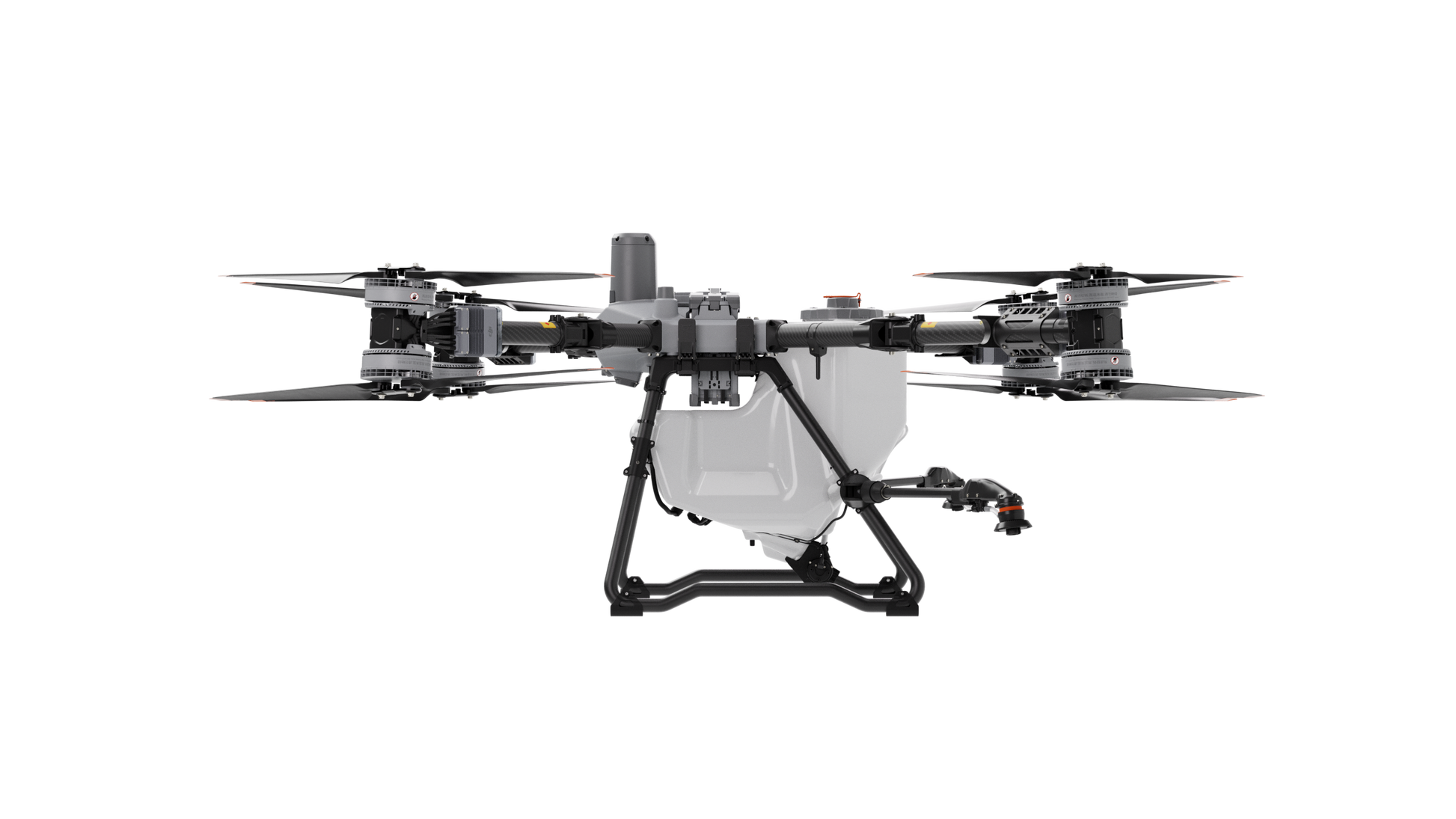

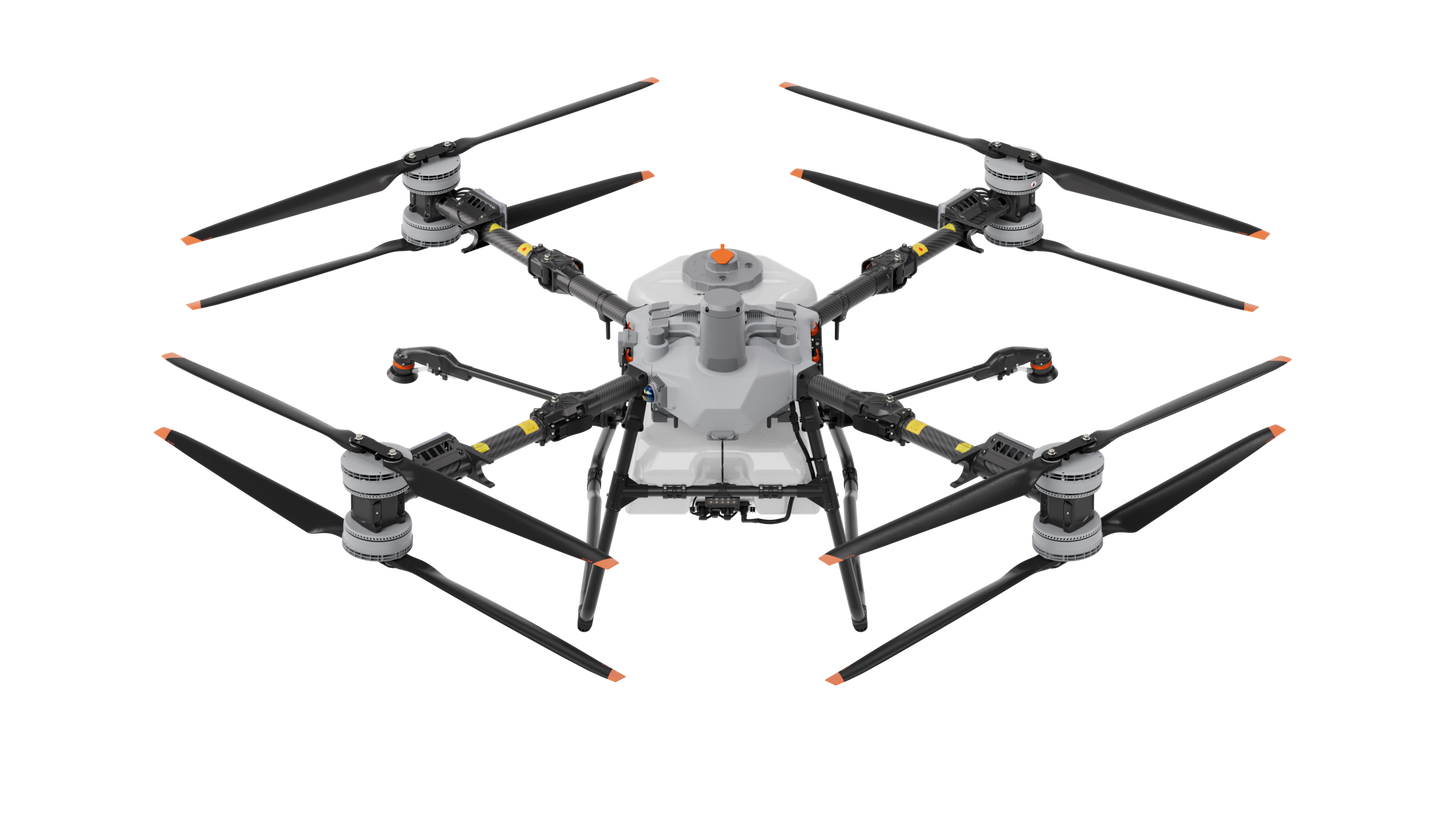

The T100 Agricultural Drone, a groundbreaking creation twelve years in the making, boasts a maximum payload of 100 kg. Its operational efficiency is doubled, supporting multiple application scenarios, including spraying, spreading, and lifting tasks. Featuring industry-leading safety systems and advanced algorithms, it delivers unparalleled safety performance and an intelligent operational experience.
Specifications
Aircraft
Weight
Weight for spraying: 75 kg (standard with 2 nozzles)
Weight for spraying: 77 kg (optional with 4 nozzles)
Weight for spreading: 75 kg (equipped with spreading system)
Weight for lifting: 65 kg (equipped with lifting system)
Weight for lifting: 90 kg (equipped with dual-battery lifting system)
Max Takeoff Weight
Max takeoff weight for spraying: 175 kg (standard with 2 nozzles)
Max takeoff weight for spraying: 177 kg (optional with 4 nozzles)
Max takeoff weight for spreading: 175 kg (equipped with spreading system)
Max takeoff weight for lifting: 165 kg (equipped with lifting system)
Max takeoff weight for lifting: 170 kg (equipped with dual-battery lifting system)
Max Diagonal Wheelbase
2330 mm (diagonal)
Dimensions
3220 mm × 3224 mm × 975 mm(arms and propellers unfolded)
1820 mm × 1840 mm × 975 mm(arms unfolded and propellers folded)
1105 mm × 1265 mm × 975 mm(arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK Enabled:
±10 cm (horizontal), ±10 cm (vertical)
RTK not enabled: Horizontal ± 0.6 m, vertical ± 0.3 m
Max Configurable Flight Radius
2 km
Operating Temperature
0 °C to 40 °C
Max Wind Resistance
<6 m/s
Propulsion System - Motors
Stator Size
155 × 16 mm
KV
60 rpm/V
Propulsion System - Propellers
Material
Carbon Fiber Composite
Dimensions
62 inches
Quantity
8 pairs
Spraying System
Model
LS100
Dimensions
880 mm × 870 mm × 810 mm (spray rod folded)
1020 mm × 1930 mm × 810 mm (spray rod unfolded)
Standard configuration:
Extra-large auger: 0.5 mm - 10 mm granules (fertilizer, wheat, feed, etc.)
Medium auger: 4 mm - 6 mm granules (rice)
Optional:
Large auger: 4 mm - 10 mm granules (rice, fertilizer)
Small auger: 0.5 mm - 4 mm granules (rapeseed, granular herbicides, granular insecticides)
Spreading System 4.0
Spreading Tank Volume
150 L
Spreader structure type
Centrifugal Disc
Discharge Structure Type
Screw Feeder Feeding
Max Discharge Rate
400 kg/min (compound fertilizer)
Max load inside the spreading operation box
100 kg
Effective spreading width
3 - 10 m
400 kg/min (compound fertilizer)
Dimensions
Standard payload: 805 mm × 764 mm × 669 mm
Lifting System
Load capacity
100 kg
Lifting Cable Length
10 m (standard configuration)
Recommended cable length
10 - 15 m
Operating Temperature
0 °C to 40 °C
Dual Battery Lifting System
Dimensions
805 mm × 960 mm × 669 mm
Load capacity
80 kg
Lifting Cable Length
10 m (standard configuration)
Emergency Escape Mode
Cable Fuse Disconnection and Escape
Recommended cable length
10 - 15 m
Operating Temperature
0 °C to 40 °C
Safety System 3.0
Millimeter wave radar EIRP
< 20 dBm (NCC / MIC / KC / CE / FCC)
Operating Temperature
0 °C to 40 °C
Operating environment requirements
Adequate light and discernible surroundings
Field of View (FOV)
Laser radar: Vertical 272°, Horizontal 60°
Front Radar: Horizontal 360°, Vertical ± 45°
Downward Radar: Left and Right ± 12.5°, Front and Back ± 22.5°
Rear Radar: Left and Right ± 45°, Front and Back ± 45°
