Converts the T100 into a sling-load transport platform for materials, supplies, produce and equipment.
Integrated weight sensor with live load display and in-app tare calibration to prevent overloading.
Agras Lift mode plans loading and unloading points, with automatic point-to-point flight between them.
Auto Balance Control actively damps cargo swing for stable handling under heavy suspended loads.
AR projection through the FPV camera confirms the drop zone before descent.
10 metre sling and hook included, with support for compliant slings from 10 to 15 metres
Product description

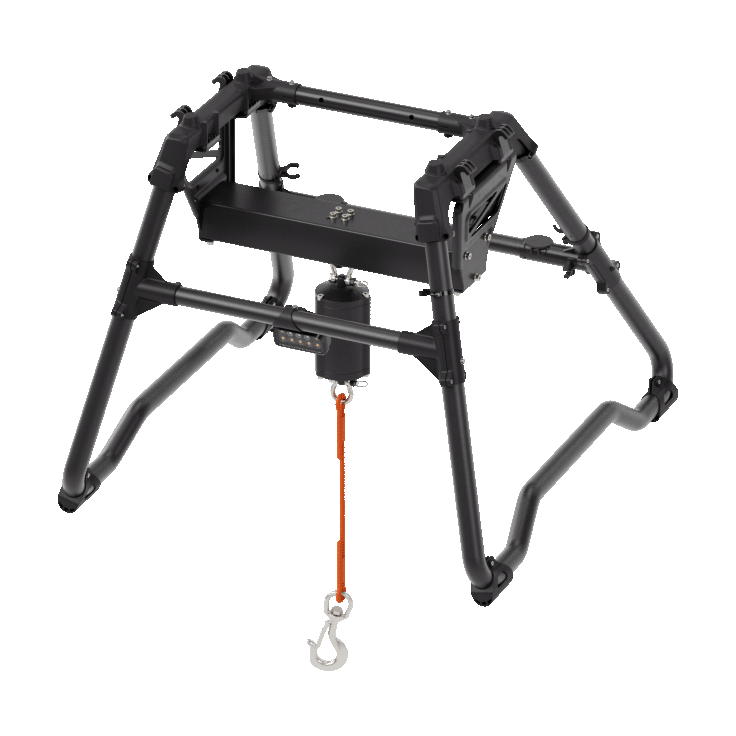

Turn your DJI Agras T100 into an aerial crane. The lift system replaces the spraying system and sling-loads building materials, solar panels, fencing, feed and harvested produce into country that vehicles cannot reach.
An integrated weight sensor shows the load live in the DJI Agras app so you never guess at what is on the hook. Dedicated Agras Lift mode lets you set loading and unloading points on the map and fly between them automatically, while AR projection through the FPV camera confirms the drop zone is clear before you descend.
Auto Balance Control actively damps cargo swing, keeping the aircraft settled under heavy suspended loads. The included 10 metre sling keeps ground crew well clear, and compliant slings up to 15 metres suit taller obstacles.
Australian payload limits apply. Talk to us about your application.
Specifications
Compatibility: DJI Agras T100 only
Lifting Capacity: 65 kg per DJI's T100 specifications, including sling and hook weight, measured at sea level (see Australian payload note below)
Included Sling: 10 m with hook
Replacement Sling Requirements: 10–15 m length, 8 mm minimum diameter, ultra-high molecular weight polyethylene or aramid fibre, hook rated to withstand 500 kg or more
Weight Sensor: Integrated, with tare calibration via the DJI Agras app
Control: Agras Lift mode in the DJI Agras app, with Auto Balance Control and multi-user point sharing via DJI SmartFarm
