High-end 45 MP full-frame sensor designed for mapping
Global Mechanical Shutter with a minimum shutter speed of 1//2000 seconds.
TimeSync 2.0 Synchronisation at the microsecond level
3cm Horizontal + 5cm Vertically is the accuracy without ground control points
3 km2 covered in a single flight, providing the efficiency for Photogrammetry missions
Product description

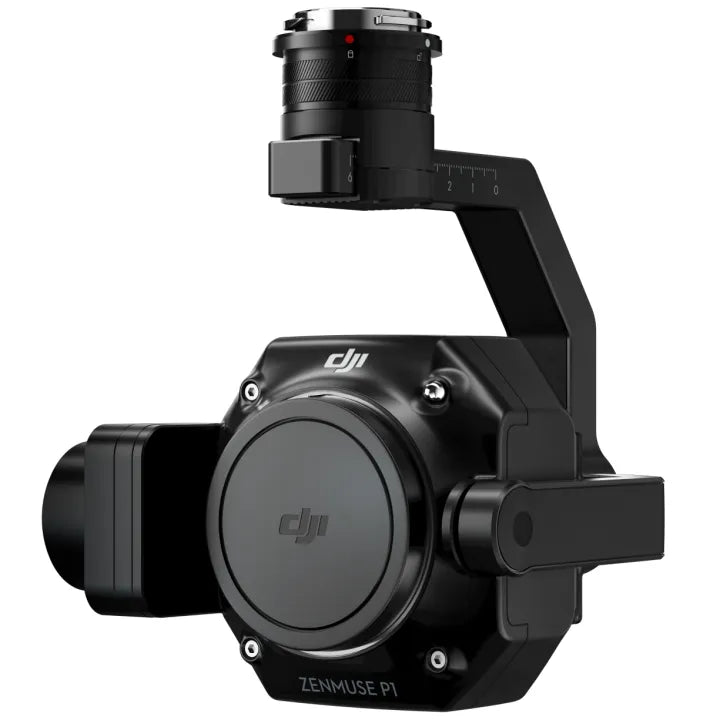

The Zenmuse P1 has set a new benchmark for Aerial Surveying with the introduction of Full-frame photogrammetry to the DJI Matrice 300 System. This new all in one gimbal solution integrates a interchangeable high-end 45 MP full-frame sensor on a redesigned 3-axis stabilised gimbal. This allows pilots to quickly change the focal length depending on the detail and zoom required. The engineers have designed the P1 with efficiency and accuracy in mind to add to the incredibly flexible M300 eco-system.
Specifications
Dimensions
198×166×129 mm
Weight
Approx. 800 g
Power
20W
IP Rating
IP4X
Supported Aircraft
Matrice 300 RTK
Operating Temperature Range
-20° to 50° C (-4° to 122° F)
Storage Temperature Range
-20° to 60° C (-4° to 140° F)
Absolute Accuracy
Horizontal: 3 cm, Vertical: 5 cm *
* Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.
Camera
Sensor
Sensor size (Still): 35.9×24 mm (Full frame)
Sensor size (Max video recording area): 34×19 mm
Effective Pixels: 45MP
Pixel size: 4.4 μm
Supported Lenses
DJI DL 24mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 84°
DJI DL 35mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 63.5°
DJI DL 50mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 46.8°
Supported SD Cards
SD: UHS-I rating or above; Max capacity: 512 GB
Storage Files
Photo / GNSS Raw Observation Data/ Image Log File
Photo Size
3:2 (8192×5460)
Operation Modes
Photo, Video, Playback
Minimum photo interval
0.7 s
Shutter Speed
Mechanical Shutter Speed: 1/2000*-1 s
Electronic Shutter Speed: 1/8000-1 s
*Aperature value no larger than f/5.6
