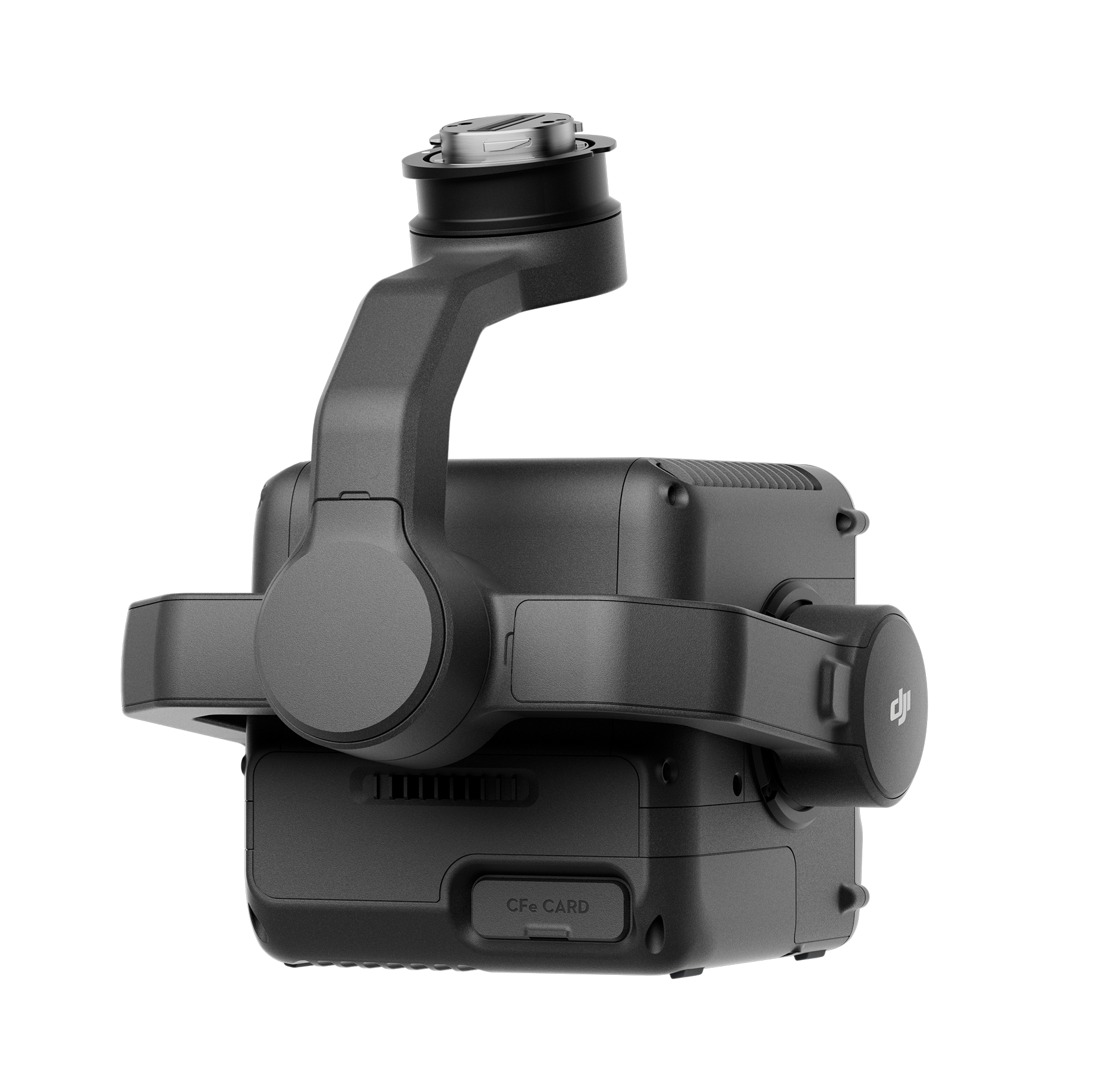

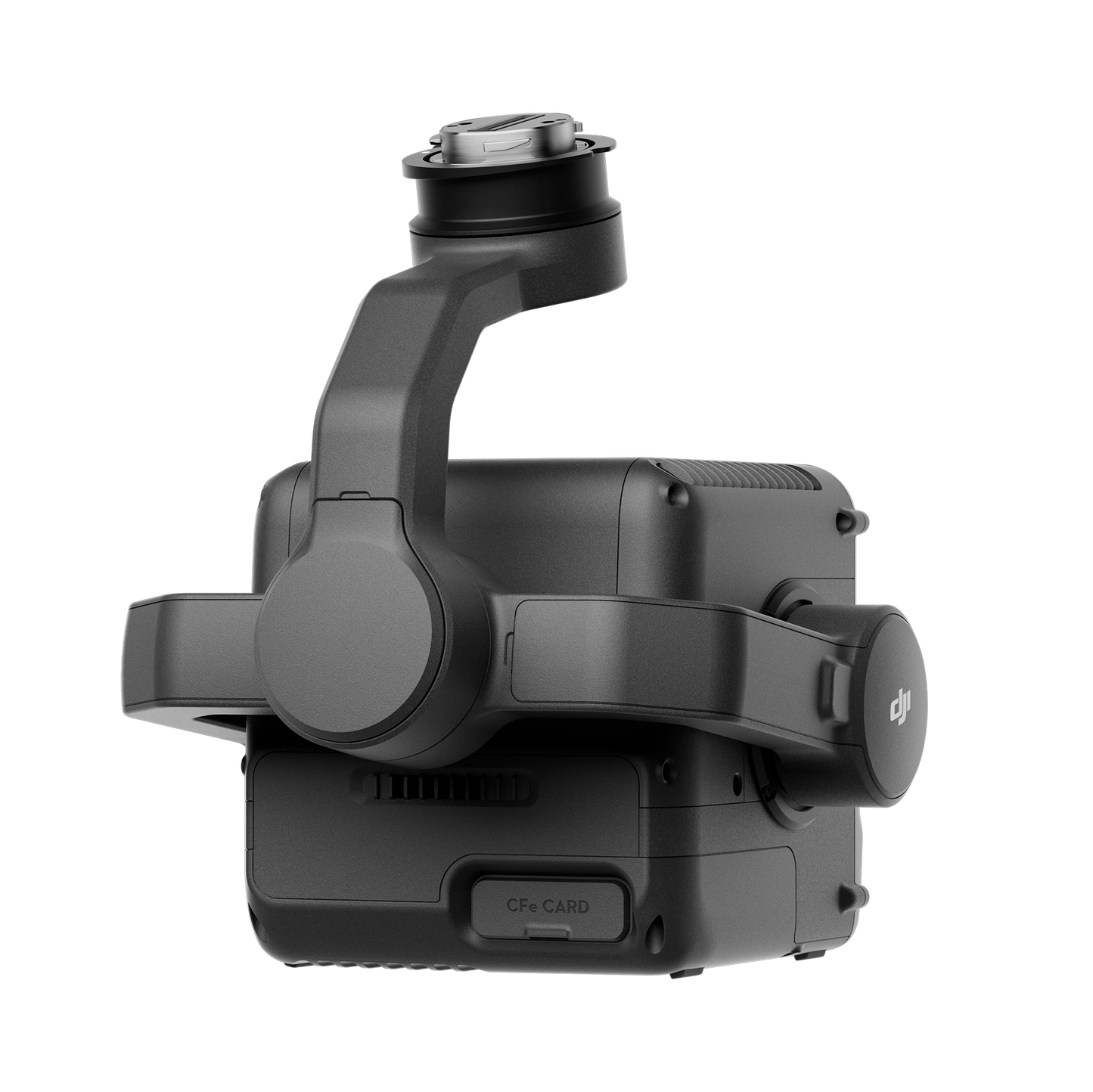

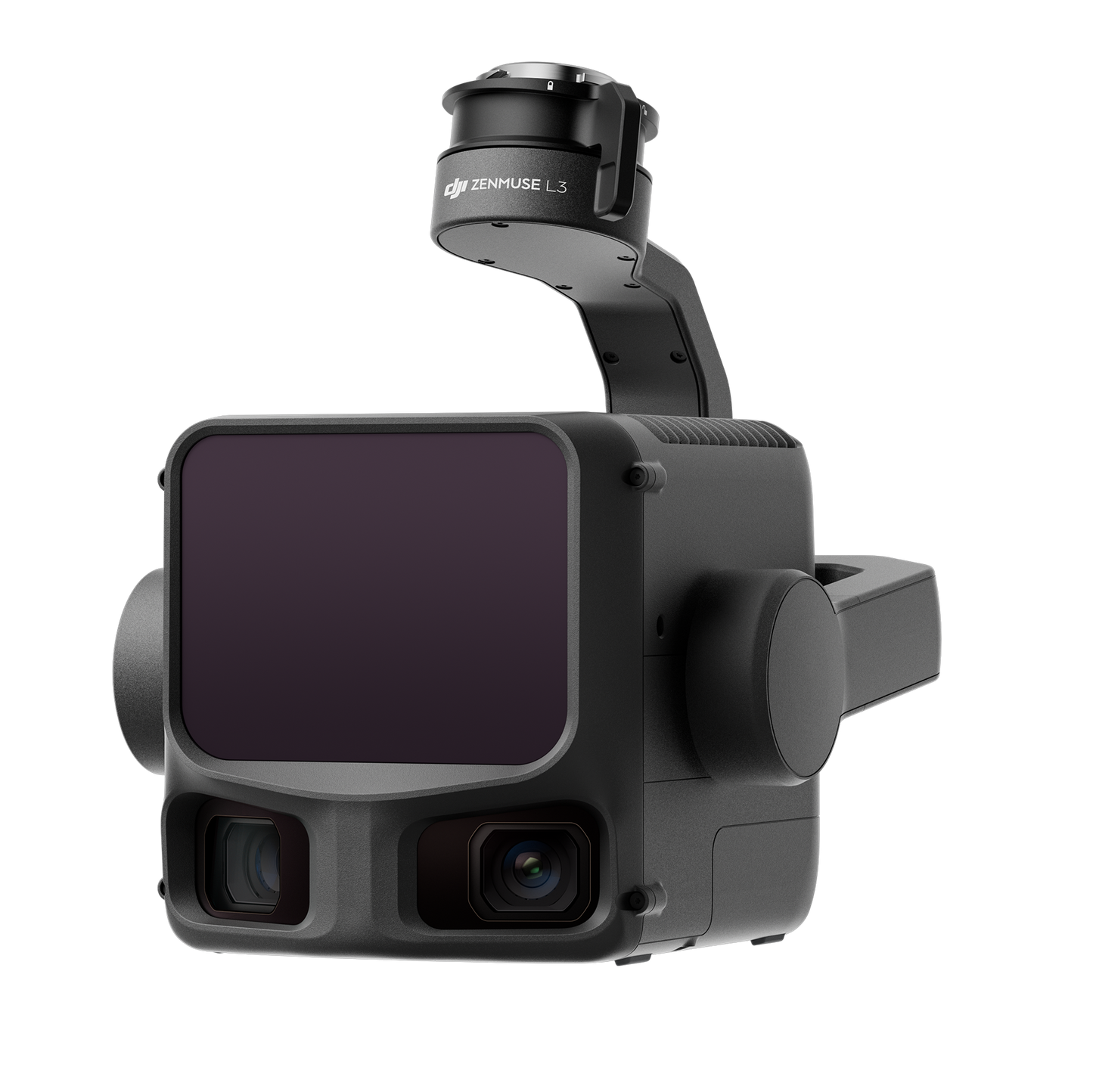

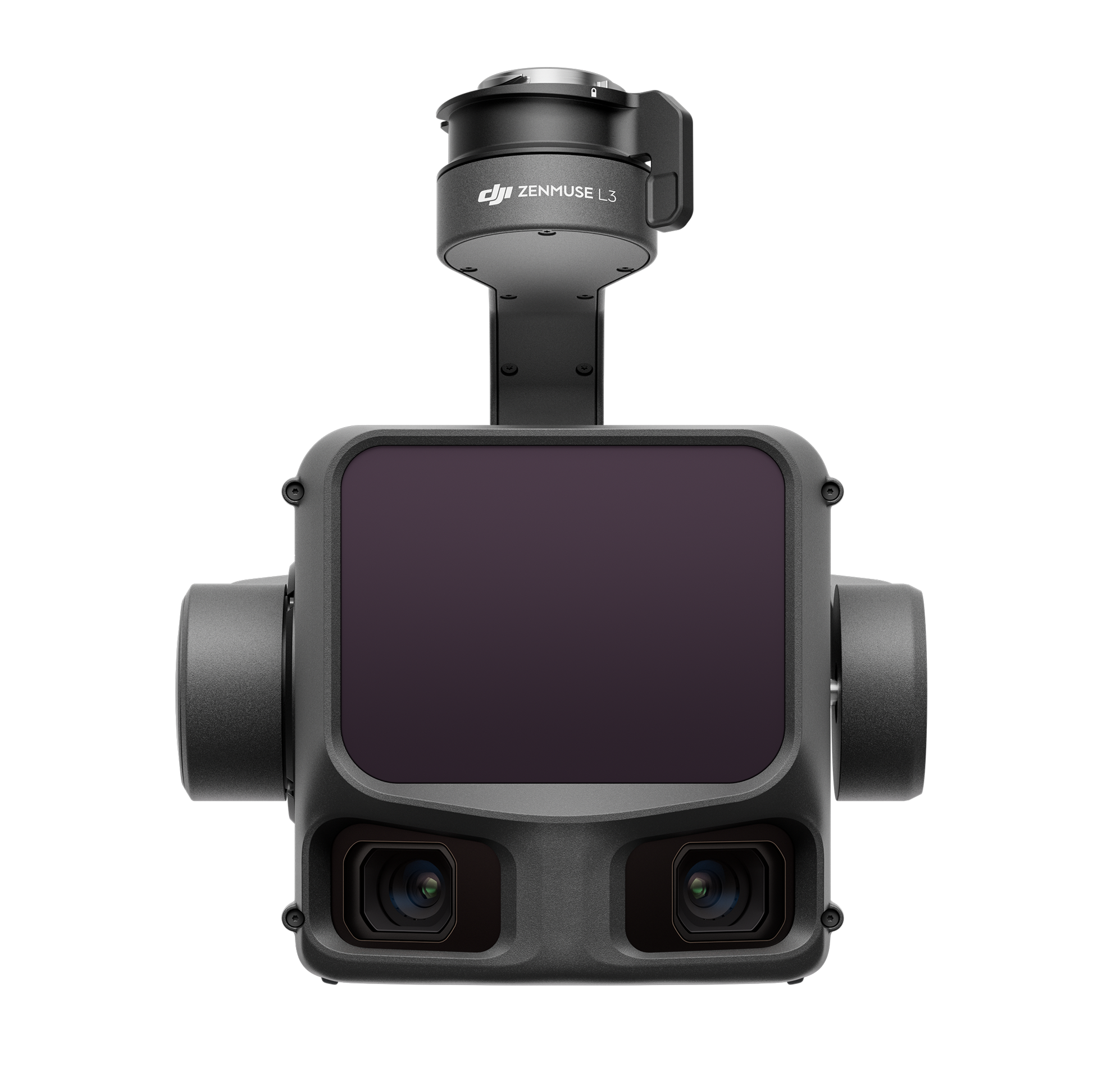

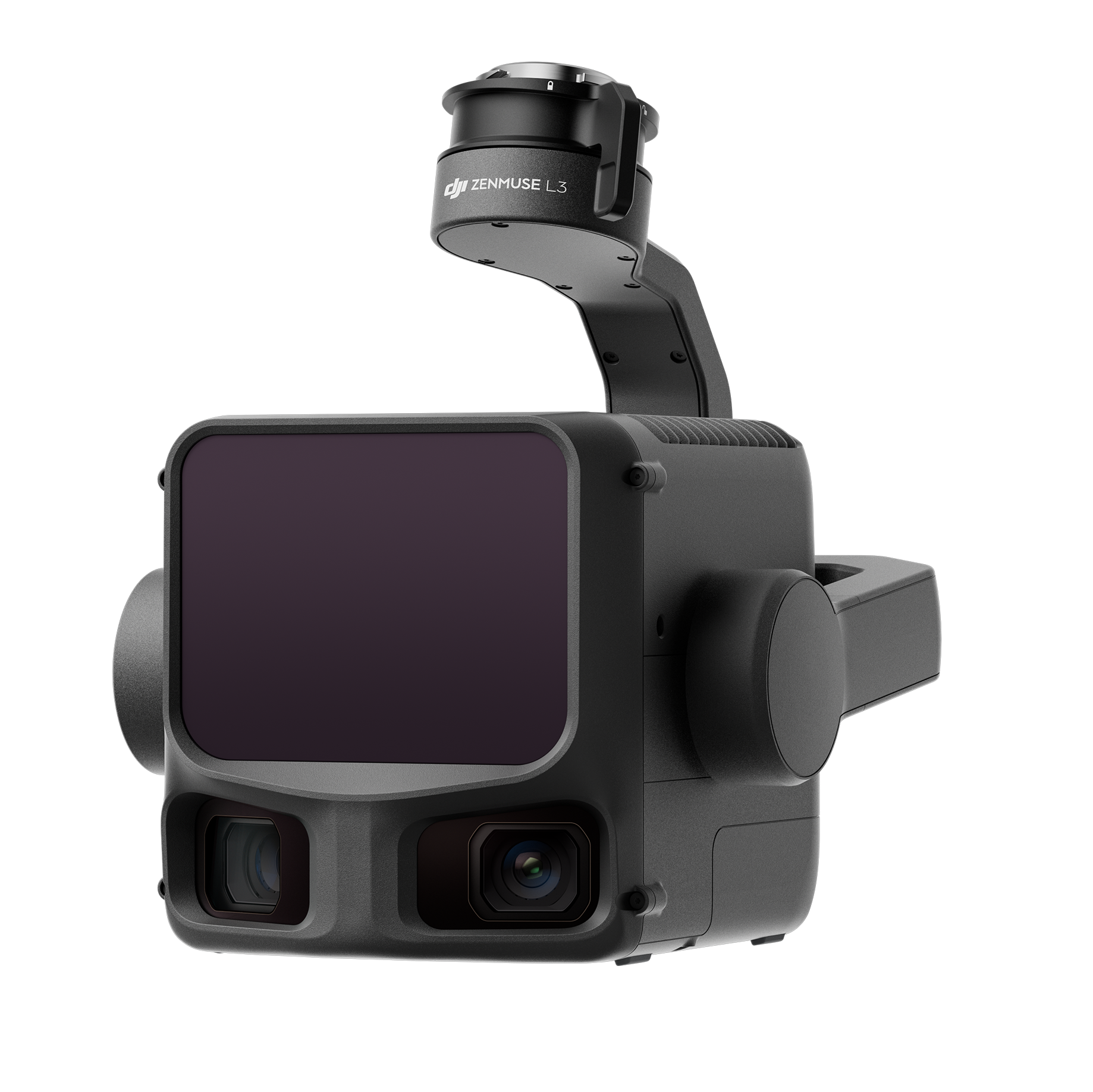

DJI Zenmuse L3 Drone LiDAR with Care Enterprise Plus

Point Cloud System Accuracy

At 120m Flight Altitude:

• Vertical Accuracy: 3 cm (RMSE)
• Horizontal Accuracy: 4 cm (RMSE)


At 300m Flight Altitude:

• Vertical Accuracy 5 cm (RMSE)
• Horizontal Accuracy: 7.5 cm (RMSE)

  Measured under the following conditions in a DJI laboratory environment:
  1. The field contained objects with obvious angular features. DJI Matrice 400 was linked to a position-calibrated D-RTK 3 Multifunctional Station. The flight route was planned using DJI Pilot 2's Area Route (with Calibrate IMU enabled) with Linear scanning. The flight speed was set to 15 m/s, gimbal pitch to -90°, and each straight segment of the flight route was less than 3300 m.
  2. Using exposed hard ground checkpoints that conformed to the diffuse reflection model.
  3. DJI Terra was used for post-processing with Optimize Point Cloud Accuracy enabled.

Point Cloud Thickness

• 1.2 cm@1σ (120m nadir flight altitude)
• 2 cm@1σ (300m nadir flight altitude)


Measured in Linear scanning mode, using check points on 80% reflectivity objects, with neither point cloud optimization nor downsampling enabled in DJI Terra. For 6σ, multiply the listed thickness by 6.

Combined Horizontal FOV (Dual RGB Mapping Cameras)

107°

Composed by merging images from two cameras with a 45° optical axis angle between them.

RGB Ground Sampling Distance (GSD)

• Average Value: 3 cm (300m nadir flight altitude)

  For detailed calculation methods, refer to the user manual available on the Downloads page of the official DJI Zenmuse L3 webpage.

Weight

• 1.60 kg (without single gimbal connector)

  The Zenmuse L3 single gimbal connector weighs 145 g.

Dimensions

• 192×162×202 mm (L×W×H)

  Measured in the default stabilized state after power-on with non-orthogonal gimbal design.

Power

• 64 W (typical)
• 100 W (max)

Supported Aircraft

DJI Matrice 400 (requires the Zenmuse L3 single gimbal connector)

Ingress Protection Rating

IP54

Operating Temperature

-20° to 50° C (-4° to 122° F)

Storage Temperature

-40° to 70° C (-40° to 158° F)

LiDAR

Laser Wavelength

1535 nm

Laser Beam Divergence

0.25 mrad (1/e²)

Laser Spot Size

• Φ 41 mm@120 m (1/e²)
• Φ 86 mm@300 m (1/e²)

Detection Range

• 700 m@10% reflectivity, 350 kHz
• 950 m@10% reflectivity, 100 kHz
• 2000 m@80% reflectivity, 100 kHz

1. Range Definition: The range is defined as the distance at which 50% of the emitted laser pulses are detected. If a laser beam hits more than one subject, the total laser transmitter power is split and the achievable range is reduced.
2. Test Conditions: 100 klx ambient light, within the central area of the FOV, using a flat subject with a size larger than the laser beam diameter, a perpendicular angle of incidence, and an atmospheric visibility of 23 km.
3. The maximum detection range is 900 m by default. For a longer range, contact DJI support or an authorized dealer.

Wire Detection Range

21.6mm Steel Core Aluminum Stranded Wire:

• 300 m@100 klx, 350 kHz

18.4mm Black PVC Insulated Wire:

• 100 m@100 klx, 350 kHz

1. Range Definition: The distance at which a fully scanned section of wire in mapping achieves a point density of 4 points per meter.
2. Test Conditions: 100 klx ambient light, 23km atmospheric visibility, LiDAR center FOV perpendicular to the wire, Non-Repetitive scanning mode, drone flying along the wire at 15 m/s, and the wire is clean and not aged.

Ranging Accuracy

• Absolute Accuracy: ±10 mm
• Repeatability: < 5 mm (1σ)

The above specifications can be met under test conditions of 25° C (77° F) ambient temperature, 350 kHz pulse rate, 80% object reflectivity, and distances of 120 m and 300 m. The actual environment may differ from the testing environment. The figure listed is for reference only.

Minimum Effective Detection Distance

10 m

Laser Pulse Emission Frequency

• 100 kHz, recommended flight altitude < 500 m
• 350 kHz, recommended flight altitude < 300 m
• 1000 kHz, recommended flight altitude < 100 m
• 2000 kHz, recommended flight altitude < 50 m

Number of Returns

• 4, 8, 16 returns (100 kHz, 350 kHz)
• 4, 8 returns (1000 kHz)
• 4 returns (2000 kHz)

Cross-Cycle Calculation

7 times

Scanning Mode and FOV

• Linear Scanning Mode: Horizontal 80°, vertical 3°
• Star-Shaped Scanning Mode: Horizontal 80°, vertical 80°
• Non-Repetitive Scanning Mode: Horizontal 80°, vertical 80°

Laser Safety Classification

Class 1 (IEC 60825-1:2014)

RGB Mapping Camera

Sensor

4/3 CMOS

Lens

• Equivalent Focal Length: 28 mm
• FOV: 73.3° (diagonal), 62° (horizontal), 41.2° (vertical)Aperture: f/2.0-f/11

Shutter

• Mechanical Shutter: 2-1/1500 s (f/2.0), 2-1/2000 s (f/2.8-f/11)
• Shutter Count: 500,000
• Electronic Shutter: 2-1/16000 s

Photo Size

• 100 MP: 12288×8192
• 25 MP: 6144×4096

Minimum Photo Interval

JPEG:

• 25 MP: 0.5 s
• 100 MP: 1 s

RAW or JPEG + RAW:

• 1.2 s

Video Specification

• Video Format: MP4 (MPEG-4 HEVC/H.265)

Resolution:

• 4K: 3840×2160@30fps
• FHD: 1920×1080@30fps

Position and Orientation System (POS)

GNSS Update Rate

5 Hz

POS Update Rate

200 Hz

Attitude Error

• Yaw Angle: 0.02° (post-processed, 1σ)
• Pitch/Roll Angle: 0.01° (post-processed, 1σ)

Positioning Accuracy

• Horizontal Accuracy: 1.0 cm + 1 ppm (RTK fix)
• Vertical Accuracy: 1.5 cm + 1 ppm (RTK fix)

Supported PPK Differential Data Formats

• DAT: Generated in Base Station Mode by D-RTK 3
• ultifunctional Station and D-RTK 2
• RINEX: v2.1x, v3.0x
• RTCM: v3.0, v3.1, v3.2, v3.3 (protocols: MSM3, MSM4, MSM5, MSM6, MSM7)
• OEM: OEM4, OEM6

For field operation, ensure the distance between the Multifunctional Station and the aircraft does not exceed 15 km, and the Multifunctional Station supports satellite observation with more than two GNSS constellations.

Gimbal

Degrees of Freedom

3-axis (pitch, roll, yaw)

Angular Accuracy

±0.01°

Mechanical Range

• Pitch: -135° to +73°
• Roll: -90° to +60°
• Yaw: -105° to +105°

Structural limit, not controllable range.

Controllable Range

• Pitch: -120° to +60°
• Yaw: -80° to +80°

Roll is uncontrollable, for stabilization only.

Self-Check Method

• Roll Axis: Self-check not required
• Yaw Axis: Checks using limit stop
  Pitch Axis: Self-check not required

Mounting Method

• Detachable DJI SKYPORT (Zenmuse L3 single gimbal connector)

Data Storage

Raw Data Storage

• Photo/IMU/Point cloud/GNSS/Calibration files

• Standard Memory Card

• CFexpress™ Type B Memory Card, sequential write speed 1500 MB/s

• Standard Card Reader

• Read/write speed > 900 MB/s

Software Ecosystem

• Data Collection

• DJI Pilot 2

• Data Processing

• DJI Terra

• Data Application

• DJI Modify

• Cloud Application

• DJI FlightHub 2

• Data Format

• DJI Terra supports exporting point cloud models in the following formats:
  Standard Point Cloud Format: PNTS/LAS/LAZ/PLY/PCD/S3MB

  DJI Modify supports importing point cloud models in the following formats:
  Standard Point Cloud Format: LAS

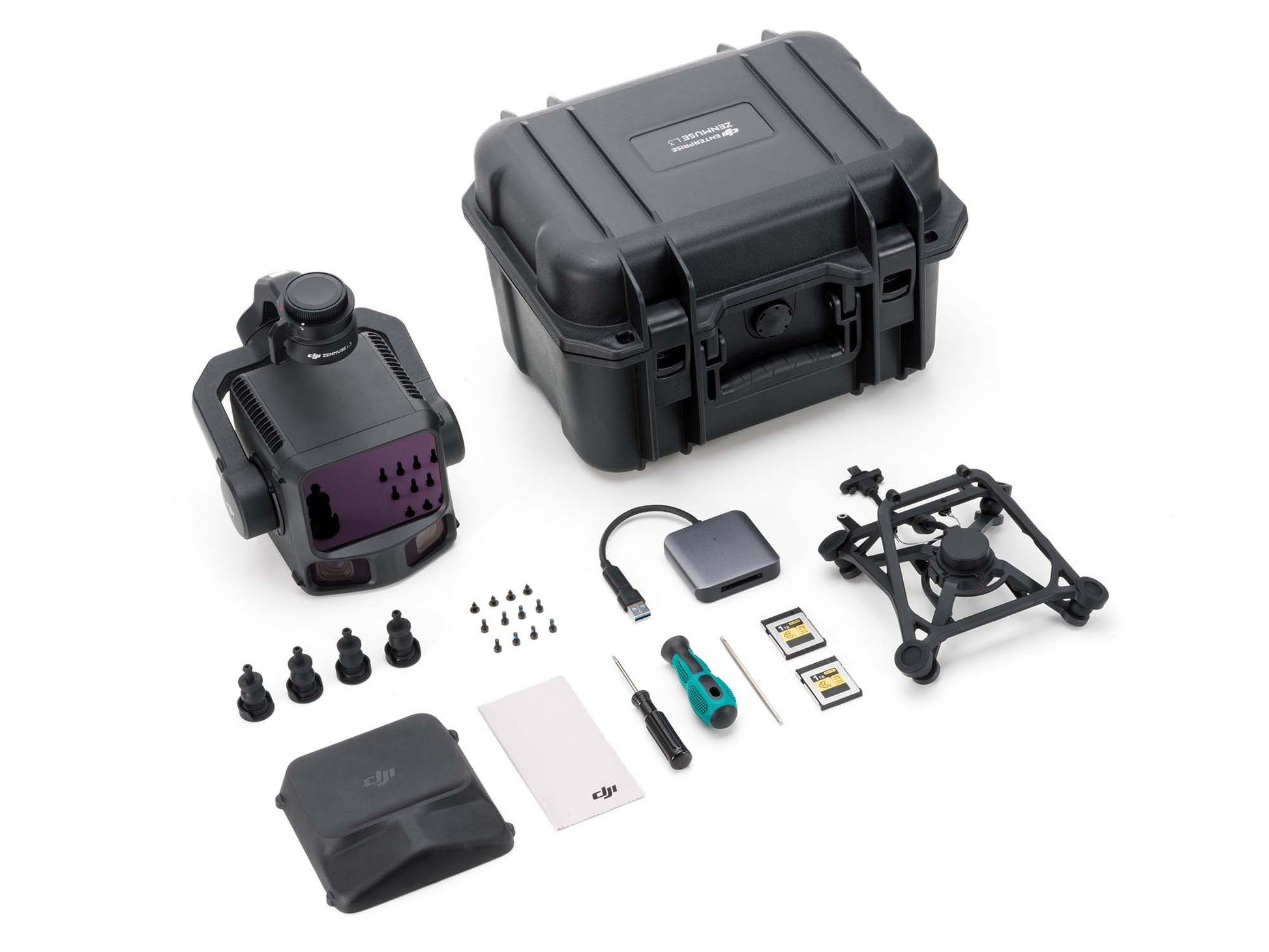

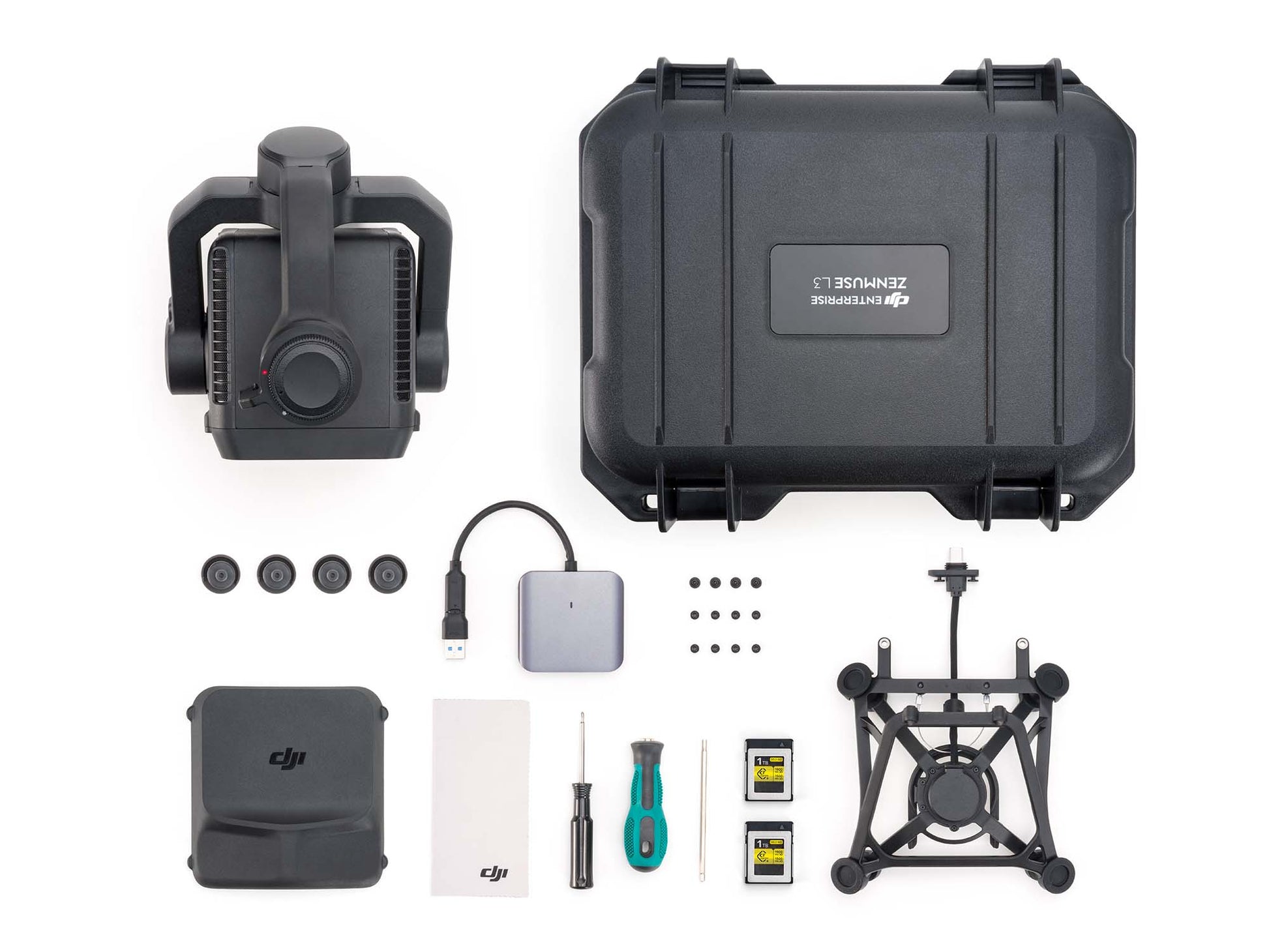

• 1x DJI Zenmuse L3 Drone LiDAR
• 1x L3 Storage Box
• 1x L3 mounting bracket for Matrice 400
• 4x Stabiliser balls
• 1x Foam insert for M400 box
• 2x CF 1TB flash cards
• 1x CF card USB reader
• Tools
