Dual Gimbal Connector runs the H30T and S1 together, so thermal search and illumination happen in one flight.
Zenmuse H30T combines wide, zoom, thermal, laser rangefinder and NIR illumination in one stabilised payload.
1280 x 1024 radiometric thermal imaging detects heat signatures through darkness, smoke and light vegetation.
Zenmuse S1 LEP spotlight throws usable light to 500 m, with gimbal sync aligning the beam to the camera view.
34x optical and 400x digital zoom identifies targets at distance without approaching the hazard.
Three TB100 batteries plus BS100 station support sustained night operations across a full shift
Product description

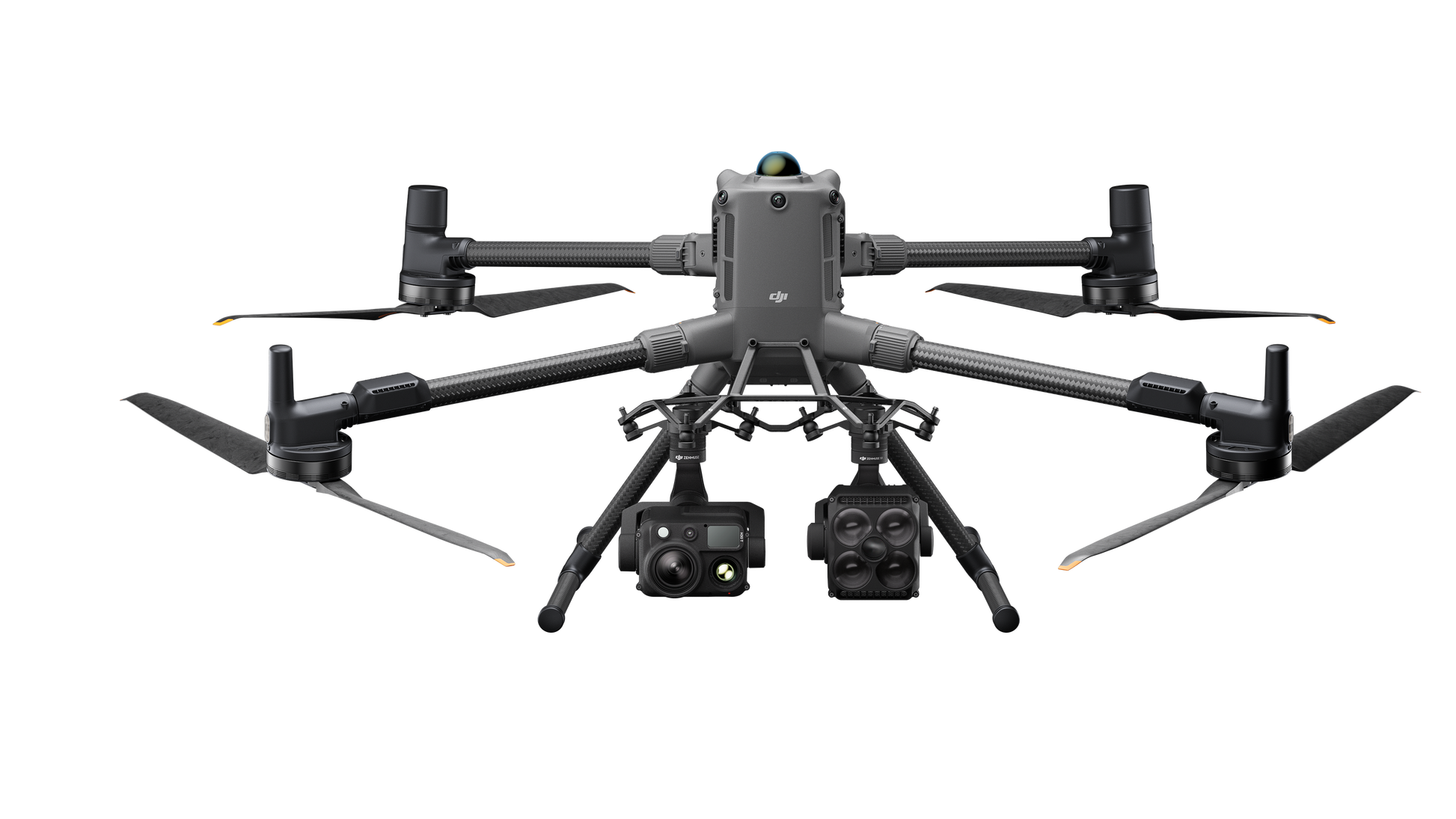

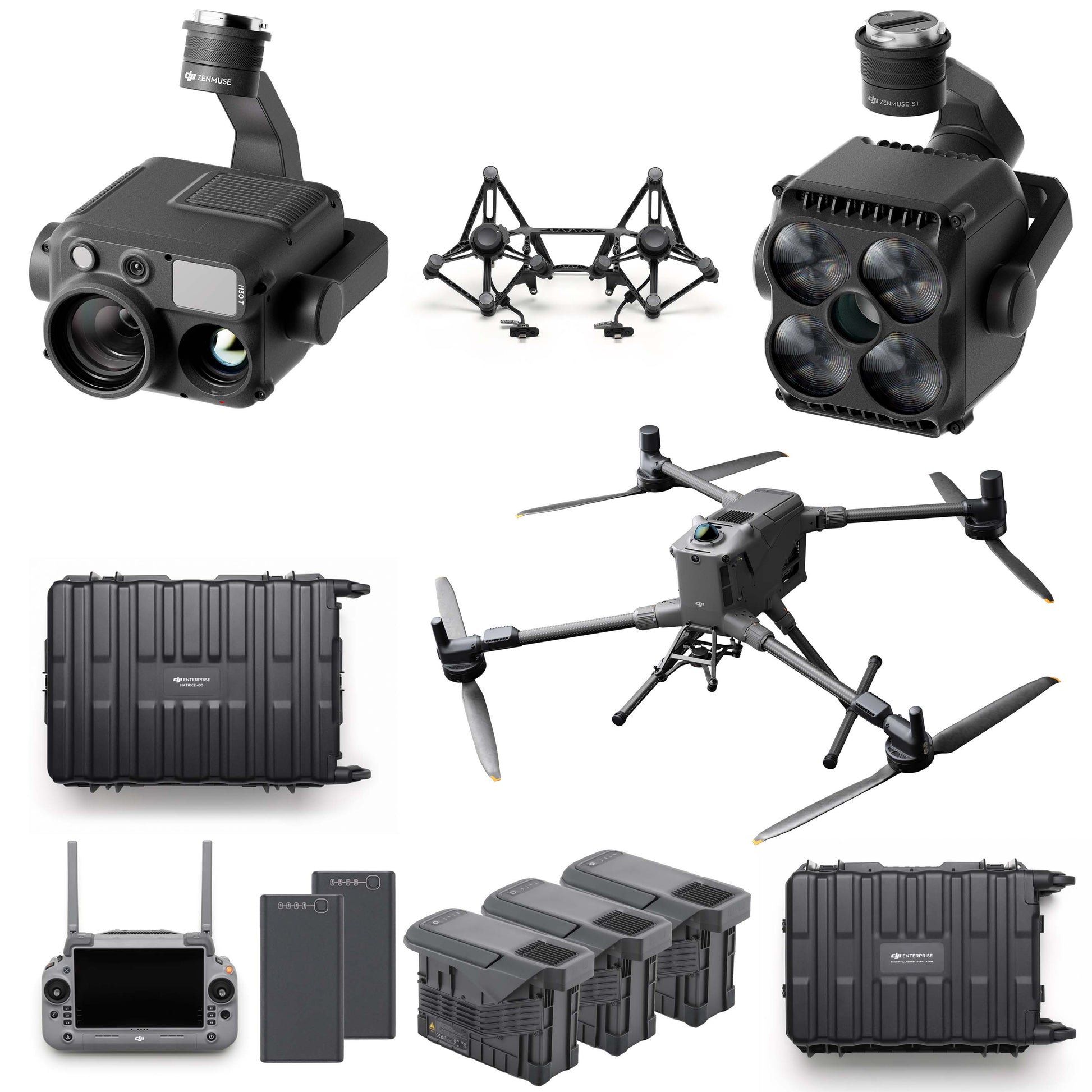

Purpose-built for work after dark. The package pairs the DJI Matrice 400 with the Zenmuse H30T multi-sensor payload and the Zenmuse S1 spotlight, both mounted simultaneously via the Dual Gimbal Connector, giving you thermal detection, long-range zoom and 500 metres of usable light in a single sortie.
The H30T carries five modules in one gimbal: a 48 MP wide camera, a 40 MP zoom with 34x optical reach, a 1280 x 1024 radiometric thermal sensor, a laser rangefinder good to 3 km, and NIR auxiliary illumination for covert observation.
Alongside it, the S1 delivers 40 lux at 100 metres and synchronises with the H30T's field of view, so the beam follows the camera rather than the pilot chasing it.
Three TB100 batteries and a BS100 station keep you flying through the night. Training and operational setup can be arranged.
Specifications
Aircraft: DJI Matrice 400
Payload Mounting: DJI Matrice 400 Dual Gimbal Connector, up to 950 g per gimbal position
Max Payload: 6 kg (measured at the third gimbal connector at sea level; decreases with altitude)
Aircraft Ingress Protection: IP55
Operating Temperature: -20°C to 50°C
Multi-Sensor Payload: DJI Zenmuse H30T
Wide Camera: 48 MP, 24 mm equivalent
Zoom Camera: 40 MP, 34x optical, up to 400x digital
Thermal Camera: 1280 x 1024 radiometric, ≤50 mK NETD, -20°C to 1600°C measurement range
Laser Rangefinder: 3 m to 3,000 m
Spotlight: DJI Zenmuse S1, LEP, 40 lux at 100 m on Matrice 400 in Both On mode, up to 500 m effective illumination
Spotlight Modes: Low beam, high beam, both on, strobe
