Includes everything you need to get spraying and spreading
Includes 3x batteries and charger
40kg spraying payload @ 16L/min
Active Phased Array Radar + Binocular Vision
Dual Atomized Spraying System
Supports flight spraying/spreading and RC mapping
Product description
Step into the future of agriculture with the DJI Agras T50 drone, your ultimate ally in the field. This isn’t just a drone; it’s a revolution, equipped with an add-on spreader tank that redefines efficiency and precision in aerial farming.

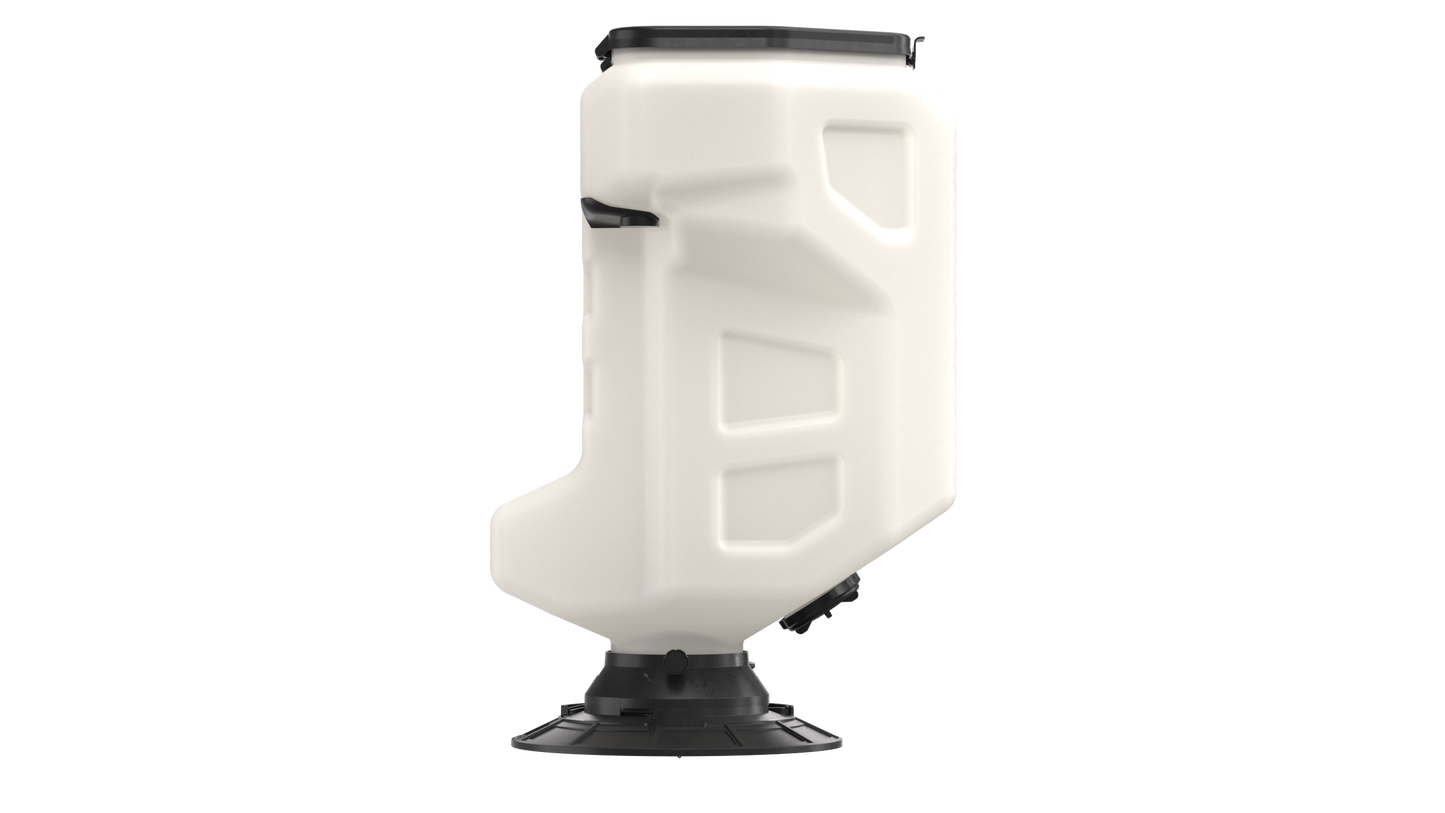

Why settle for less when you can have the best? The T50’s robust spreader tank is meticulously designed to handle 50 kg/75L of material, be it seeds, fertilizers, or pesticides. Its precise distribution mechanism ensures every inch of your land receives exactly what it needs, exactly where it needs it. Boost your yield with unmatched precision with the advanced spreading system that disperses materials evenly, reducing waste and increasing coverage. You’ll witness a significant reduction in labour costs and an impressive increase in crop uniformity and health.
Specifications
Aircraft Parameters
Total weight
38 kg (without battery)
50 kg (with battery)
Max Takeoff Weight
Max takeoff weight for spraying: 90 kg (at sea level)
Maximum takeoff weight for spreading: 101 kg (at sea level)
Max Diagonal Wheelbase
2184 mm
Dimensions
2800 mm × 3150 mm × 780 mm (arms & propellers unfolded)
1590 mm × 1930 mm × 780 mm (arms unfolded, propellers folded)
1125 mm × 750 mm × 850 mm (arms folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK positioning enabled:
±10 cm horizontal, ±10 cm vertical
RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
Hovering without payload: 18 min (@30000 mAh & takeoff weight 50 kg)
Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 90 kg)
Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 101 kg)
Max flight radius can be set
2000 m
Max Wind Resistance
6 m/s
Propulsion System - Motor
Stator Size
100×33 mm
Motor KV Value
48 RPM/V
Motor Power
4000 W/rotor
Propulsion System - Propeller
Diameter
54 inch
Rotor Quantity
8
Dual Atomized Spraying System - Operation Box
Operation Box Capacity
Full load 40 L
Operating Payload
Full load 40 kg[1]
Dual Atomized Spraying System - Sprinkler
Sprinkler Model
LX8060SZ
Sprinkler Quantity
2
Droplet Size
50-300 μm
Max Effective Spray Width
11 m (relative operating altitude 2.5 m, flight speed 7 m/s)
Dual Atomized Spraying System - Water Pump
Pump Model
Magnetic Drive Impeller Pump
Max Flow Rate
6 L/min*2
T50 Spreading System
Applicable Materials
Solid dry particles with a diameter of 0.5 to 5 mm
Spread Tank Volume
70 L
Spread Tank Internal Load
50 kg[1]
Spread Width of Spreading System
7 m
Recommended Operating Temperature
0°C to 40°C (32°F to 104°F)
Active Phased Array Omnidirectional Radar
Model Number
RD2484R
Terrain Follow
Max incline: 30°
Obstacle Avoidance
Sensible distance (horizontal): 1.5-50 m
FOV: 360° horizontal, ±45° vertical
Operating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/s
Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
Sensing direction: horizontal omnidirectional avoidance;
Sensible distance (above): 1.5-30 m
FOV: 45°
Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraft
Safe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking)
Sensing direction: Upward
Active Phased Array Backward and Downward Radar
Model Number
RD2484B
Altitude Detection
Within the altitude detection range: 1-45 m
Fixed altitude range: 1.5-30 m
Rear Obstacle Avoidance
Sensible distance (rear): 1.5-30 m
FOV: ±60° horizontal, ±25° vertical
Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m behind the aircraft and the flight speed does not exceed 7 m/s
Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
Sensing direction: backward
Binocular Vision System
Measurable Range
0.4-25 m
Effective Sensing Speed
≤7 m/s
FOV
Horizontal: 90; Vertical: 106°
Work Environment Requirements
Normal lighting with clearly textured surfaces
Intelligent Remote Controller
O3 Pro Operating Frequency
2.4000 to 2.4835 GHz
5.725 to 5.850 GHz
O3 Pro Signal Effective Distance
SRRC: 5 km
MIC/KCC/CE: 4 km
FCC: 7 km
(aircraft altitude at 2.5 m in an unobstructed environment with no interference)
Wi-Fi Protocol
WIFI 6
Wi-Fi Operating Frequency
2.4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 to 5.850 GHz
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Frequency
2.4000-2.4835 GHz
Location
GPS + Galileo + BeiDou
Display Screens
7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness2
Operating temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range
-30°C to 45°C (within one month)
-30°C to 35°C (between one month and three months)
-30°C to 30°C (between three months and one year)
Charging Temperature
5° to 40°C (41° to 104°F)
Internal Battery Life
3.3 hours
External Battery Life
2.7 hours
Charging Type
Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.
Charging Time
Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)
