Enhances communication by extending the video transmission range up to 25 km in optimal conditions.
Provides centimeter-level RTK positioning accuracy for high-precision drone operations.
Supports Power over Ethernet (PoE) for efficient and streamlined installation.
Designed to function exclusively in relay mode, ensuring stable signal transmission in obstructed environments.
Works with DJI Dock 3 to enhance signal stability and positioning accuracy.
Built to support long-duration fixed deployments in various operational environments.
Product description

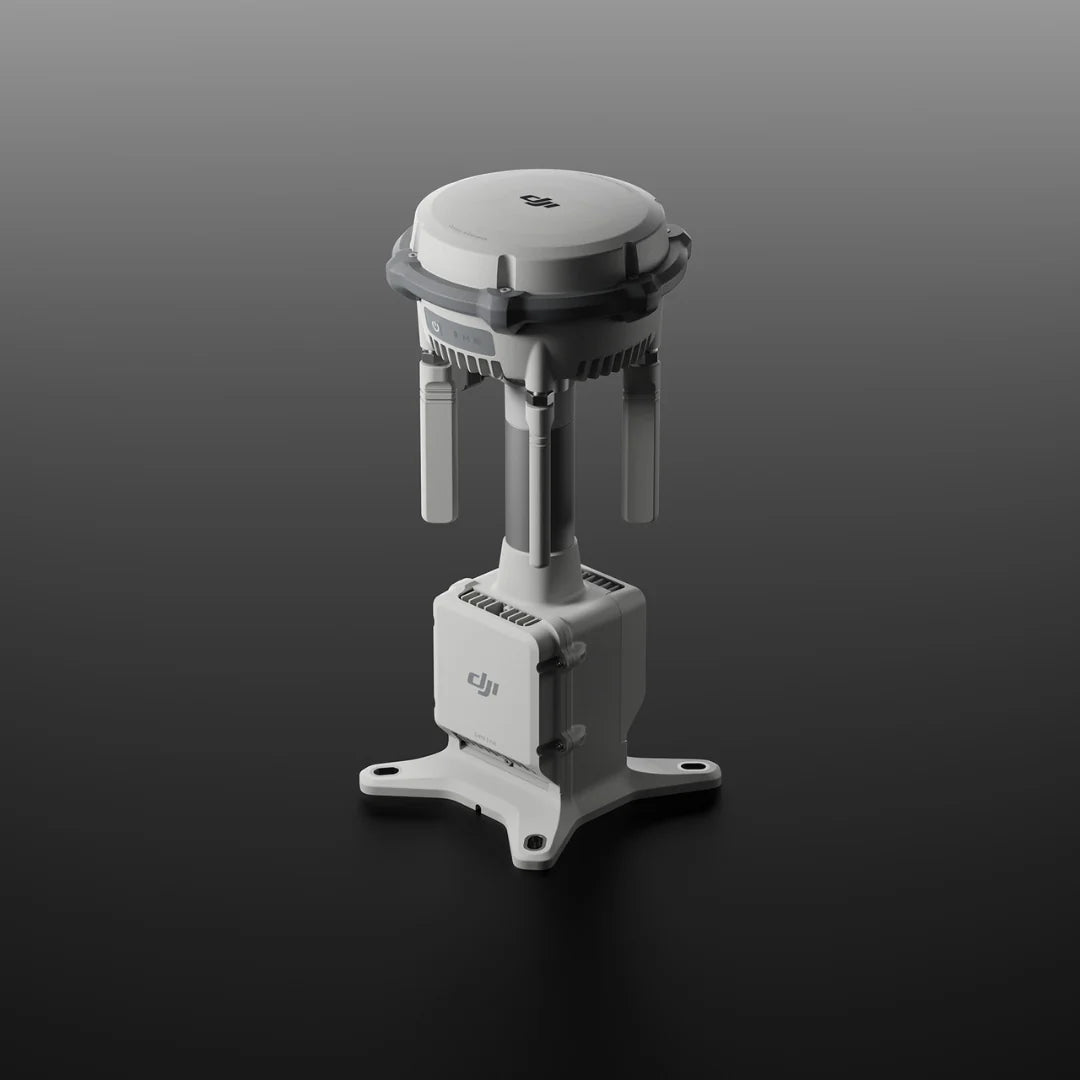

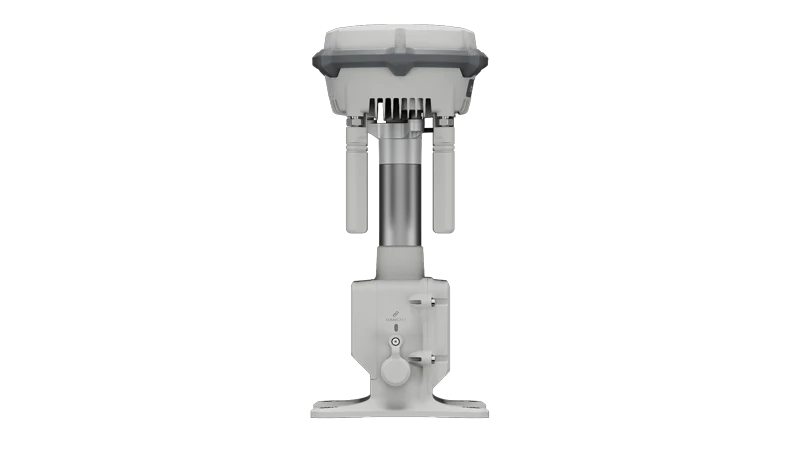

The DJI D-RTK 3 Relay Fixed Deployment Version is engineered to enhance the operational capabilities of the DJI Dock 3 by extending communication range and providing precise Real-Time Kinematic (RTK) positioning data.Designed exclusively for use with Dock 3, this relay operates solely in relay mode to bridge signal gaps in environments where obstacles may impede direct communication.
Specifications
Power Consumption:
Relay Station Mode: 14.5 W (maximum without heating)
With heating (connected to PoE Type 4): up to 36.5 W
Power Output Ports:
USB Type-C
Ethernet Port (PoE)
Supported Power Adapters:
DJI Dock 3 PoE Output Port
Third-party PoE Power Supplies:
IEEE 802.3bt Type 4 (PoE++): 52 V to 57 V output, 99.9 W max
IEEE 802.3bt Type 3 (PoE++): 50 V to 57 V output, 60 W max
IEEE 802.3at Type 2 (PoE+): 50 V to 57 V output, 30 W max
Battery Operating Time (Under Normal Temperature):
Relay Station Mode: 4 hours (when powered by internal battery)
When powered by PoE, the built-in battery enters preservation mode and does not fully charge; upon PoE disconnection, the built-in battery delivers up to 2 hours of runtime
Ingress Protection Rating:
IP67
Operating Temperature Range:
-30°C to 50°C (-22°F to 122°F)
Compatibility:
Designed for fixed deployment with DJI Dock 3 and compatible with Matrice 4D Series drones
Functionality:
Supports relay station mode exclusively
Enhances communication range and provides precise RTK positioning data
Additional Features:
Equipped with lightning surge protection
High-redundancy hardware and software design for reduced maintenance costs
