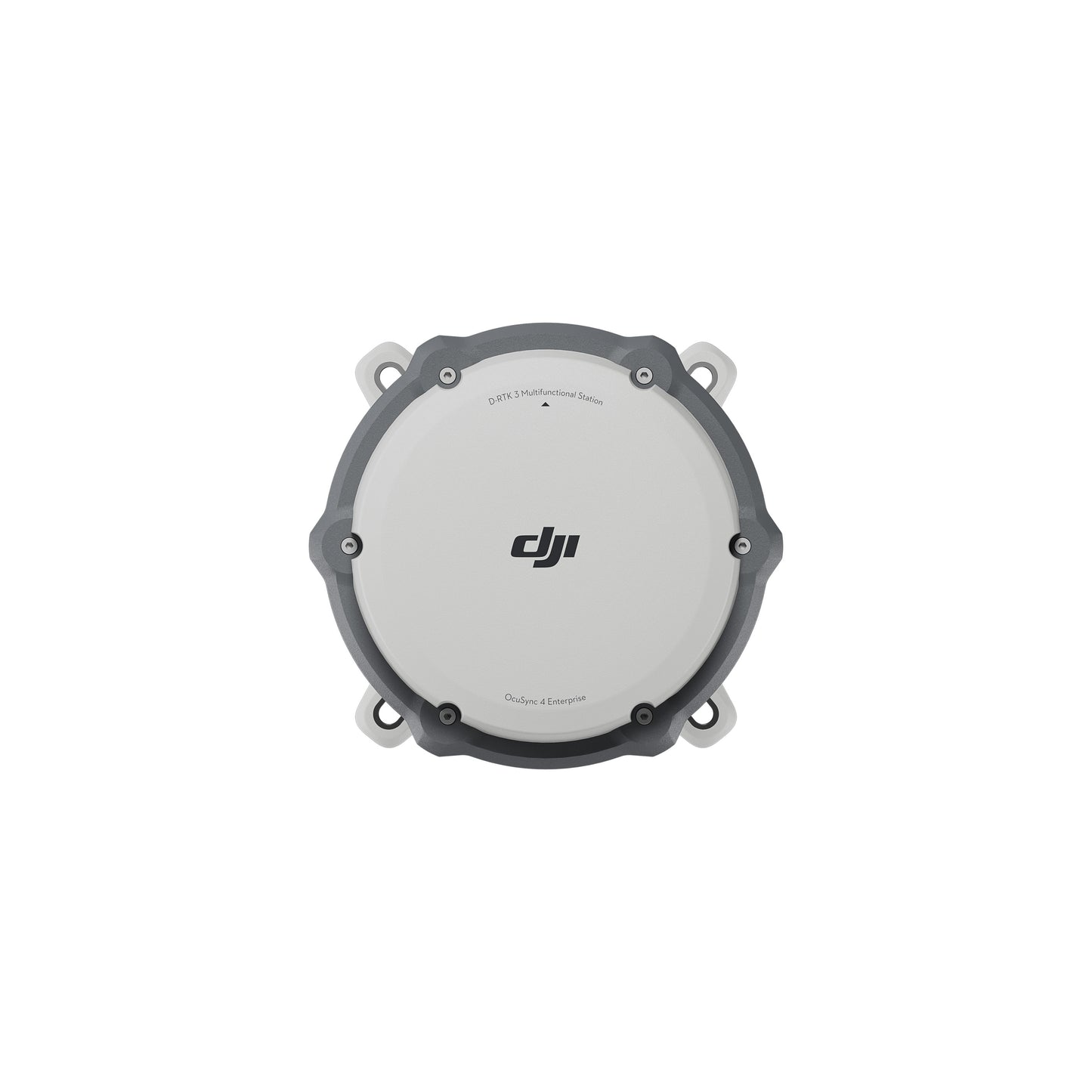

The new D-RTK 3 Multifunctional Station integrates high-performance antennas and receiver modules capable of tracking and resolving data from major global satellite navigation systems, and it supports multiple data transmission links. With these outstanding features, it can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously or extend the operational range of drones in relay station mode. Additionally, the new rover station mode, combined with the DJI Enterprise app and DJI Terra, provides a comprehensive solution for high-precision aerial surveying applications, ensuring a secure and accurate operation. (Tripod sold separately)
Specifications
GNSS Frequency
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
GALILEO: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
System Accuracy
Base Station Accuracy: Single Point Accuracy (Uncalibrated) – Horizontal 1.5 m (RMS), Vertical 3.0 m (RMS)
Satellite-Based Differential Accuracy: Convergence Time 20 mins, Horizontal 30 cm (RMS), Vertical 40 cm (RMS)
Network RTK Calibration: Horizontal 1.0 cm (RMS) + 1 ppm, Vertical 3.0 cm (RMS) + 1 ppm
Rover Station RTK Accuracy (Fixed Survey): Horizontal 0.8 cm (RMS) + 1 ppm, Vertical 1.5 cm (RMS) + 1 ppm
Rover Station RTK Accuracy (Tilt Survey): Angle Range 0° to 60°, Horizontal 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
Satellite-Based Precise Point Positioning: Supported Frequencies – BDS B2b, GALILEO E6, L-BAND, Convergence Time 20 mins, Horizontal 30 cm (RMS), Vertical 40 cm (RMS)
Differential Data Transmission Format
Base Station/Relay Station Mode: Records RTCM 3.2 raw observation data in DAT format
Rover Station/Calibration Mode: Supports RTCM v3.0, v3.1, v3.2, v3.3, MSM4, MSM5, MSM6, MSM7 protocols, Recommended receivers support four or more GNSS systems
Transmitter Power (EIRP): 2.4000 GHz to 2.4835 GHz – <33 dBm (FCC), <20 dBm (CE/SRRC/MIC), 5.150 GHz to 5.250 GHz – <23 dBm (CE/FCC), 5.725 GHz to 5.850 GHz – <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Bluetooth
Protocol: Bluetooth 5.1
Frequency: 2.400 GHz to 2.4835 GHz
Transmitter Power (EIRP): <10 dBm
Max Transmission Distance
Base Station Mode (Unobstructed, Free of Interference): FCC – 15 km, SRRC – 12 km, CE/JP – 8 km
Rover Station Mode: Between D-RTK 3 and mobile devices – 30 m
Relay Station Mode (Unobstructed, Free of Interference): FCC – Aircraft to Relay Station 25 km, Relay Station to Remote Controller 1 km, SRRC – Aircraft to Relay Station 12 km, Relay Station to Remote Controller 1 km, CE – Aircraft to Relay Station 10 km, Relay Station to Remote Controller 300 m
Relay Station Mode (Unobstructed, With Interference): Strong interference (City centers) 1.5-5 km, Medium interference (Suburban areas) 5-15 km, Micro interference (Remote areas/seaside) 15-25 km
Relay Station Mode (Obstructed, With Interference): Low Interference + Buildings 0-0.5 km, Low Interference + Trees 0.5-3 km
Antenna
OcuSync 4 directional antennas × 4, 2T4R
Standard reverse polarity SMA connector
Electrical Properties
Power Consumption: Relay Station 14.5 W (max without heating), 36.5 W (max with heating), Base Station 7 W, Rover Station 6.2 W
Supported Power Adapter: USB PD 3.0 protocol, output voltage 9V to 15V (e.g., DJI 65W Portable Charger)
Power Output Port: USB Type-C
Operating Time (Normal Temperature): Relay Station 4 hrs, Base Station 7 hrs, Rover Station 10 hrs
Battery
Type: LiPo
Capacity: 6500 mAh
Energy: 46.8 Wh
Physical Characteristics
Operating Temperature: -20° to 55°C (-4° to 131°F)
Altitude Limit: 6000 m
Protection Rating: IP67 (Ensure all rubber plug interfaces are properly installed)
Drop Resistance: 2 m drop with pole
Dimensions: 163 × 89 mm (without OcuSync Directional Antennas)
